Click on the category below to go directly to the Ortofon product page of your choice:

Ortofon offers a full range of fine products to complement their exceptional phono cartridges.

Whether you need a tonearm, tonearm cable, digital VTF scale, step up transformer, or just about anything else for you analog rig, Ortofon has you covered.  You will find a selection of useful items here that all feature the same thoughtful execution of design that is the hallmark of Ortofon phono cartridges.

For more information about this exceptional product line or to place an order, please call us at 573-696-3551 or email us at customer_service@audiointelligent.com.  Ortofon products are not available through our Online Store but only by telephone or email.

Please be sure to pay a visit to the Ortofon website to learn more about the history of this exceptional company and its products.

Ortofon tonearms offer excellent versatility and exceptional performance for both historic and modern turntable applications.

Ortofon tonearms are legendary in their performance, both with the superior Ortofon SPU moving coil phono cartridges on historic turntable and when used with modern turntables such as the Merrill-Williams and Merrill-Scillia models.  Ortofon has taken a no nonsense approach to the design of these tonearms, building ease of adjustment and use and high-quality parts into the designs.

Ortofon AS Series Tonearms

Ortofon’s AS series static-balance tonearms feature high quality materials and construction, combined with a nod to analog’s past, for precise sound reproduction combined with a modern-vintage aesthetic.  AS series tonearms can be used for a wide array of phono cartridges (SPU phono cartridges require an additional counterweight, sold below) and feature anti-skating control and easy adjustment for vertical tracking angle and stylus rake angle.  DIN-to-RCA phono cable included.  Headshell NOT included.  See below for available headshell models.

AS-212S AS-309S

SPECIFICATIONS

AS-212S

AS-309S

Effective Length From Tonearm Pivot To Stylus Tip

229 mm

326 mm

Tonearm Pivot To Spindle Distance

214 mm

311 mm

Overhang

15 mm

15 mm

Offset Angle

22°

19°

Tracking Force Adjustment Range (Direct Reading)

0 - 3 grams

0 - 3 grams

Height Adjustment Range

35 mm – 55 mm

35 mm – 55 mm

Diameter Of Armbase Mounting Hole

19 mm – 20 mm

19 mm – 20 mm

Diameter Of Tonearm Mounting Shaft

18 mm

18 mm



Retail Prices:


              AS-212S (9 Inch):    $2099.00
              AS-309S (12 Inch):  $2225.00



Ortofon RS Series Tonearms

The Ortofon RS Series tonearms take analog sound reproduction to a higher level with highly configurable VTF options and a dynamic balance system for increased stability when tracking warps and other anomalies. Available in both 9 inch and 12 inch effective lengths, the RS Series tonearms can be used for a wide array of cartridges and feature precise, easily adjustable anti-skating control.  DIN-to-RCA tonearm cable, SH-4 headshell, and a DS-1 Digital Stylus Force Gauge are all included.



RS-212D RS-309D

SPECIFICATIONS

RS-212D

RS-309D

Effective Length From Tonearm Pivot To Stylus Tip

229 mm

326 mm

Tonearm Pivot To Spindle Distance

214 mm

311 mm

Overhang

15 mm

15 mm

Offset Angle

22°

19°

Tracking Force Adjustment Range (Direct Reading)

0 - 5 grams

0 - 5 grams

Height Adjustment Range

42 mm – 57 mm

42 mm – 57 mm

Diameter Of Armbase Mounting Hole

34 mm – 36 mm

34 mm – 36 mm

Diameter Of Tonearm Mounting Shaft

16 mm

16 mm



Retail Prices:


              RS-212D (9 Inch):    $3359.00
              RS-309D (12 Inch):  $3569.00


Optional Heavier Counterweights for Ortofon AS Series Tonearms

Designed specifically to compensate for the additional weight of SPU and A-Type phono cartridges, these counterweights are a direct replacement for the standard counterweight sold with the AS Series tonearms and are of the same type and high quality design and construction.  For use with cartridges weighing between approximately 26 grams and 38 grams.

Retail Prices:

              Weight C- For use with AS-212S (9 Inch) tonearm:  $251.00

              Weight D- For use with AS-309S (12 Inch) tonearm:  $314.00



Ortofon TA Series Tonearms

The latest additions to the Ortofon tonearm lineup, the TA-110 is a 9 inch effective length tonearm, and the TA-210 is a 12 inch effective length tonearm.   Both variants are designed to provide a wide range of tonearm mass configurations simply by changing headshells and by use of the supplied Extra Mass Ring with the TA-210.

The Ortofon TA Series tonearms are unique in the fact that the arm wand is injected with a special rubber damping material. This results in superior resonance control that is equal to that of tonearms costing much more.  Both the Ortofon TA-110 and the TA-210 feature a gimbaled bearing system and they are statically balanced.

All Ortofon headshell models will fit the TA Series tonearms, and the LH-2000E headshell is supplied with both models.  A mounting template is also included, as is the 6NX-TSW1010 high purity tonearm cable. Both TA Series tonearms can be adjusted using both Baerwald and IEC alignment geometry.

TA-110 Both TA Series tonearm models
come with a storage box, tonearm cable, and headshell.

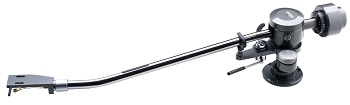

TA-210 The TA-210 includes an Extra Mass Ring.


SPECIFICATIONS

TA-110

TA-210

Effective Length From Tonearm Pivot To Stylus Tip

231 mm

329 mm

Tonearm Pivot To Spindle Distance

213 mm

316.6 mm

Overhang

18 mm

12.4 mm

Offset Angle

23.9°

16.5°

Tracking Force Adjustment Range(Direct Reading)

0 - 3 grams

0 - 3/ 0 - 4 grams

Height Adjustment Range

35 mm – 55 mm

35 mm – 55 mm

Diameter Of Armbase Mounting Hole

19 mm –20 mm

19 mm –20 mm

Diameter Of Tonearm Mounting Shaft

18 mm

18 mm


Retail Price:



        TA-110 (9 Inch):  $1679.00

        TA-210 (12 Inch):  $1994.00



Adapter For Use With A-Type Phono Cartridges

The AP J-1 adapter is designed to allow users of Ortofon tonearms that are installed and set up for SPU phono cartridges to use A-Type phono cartridges as well by compensating for the difference in length of the phono cartridges.  High quality parts and connectors are used throughout to prevent the degradation of the signal from the phono cartridge.  The AP J-1 is very much indispensible for those who want to experiment with different cartridge types.

Retail Price:  $120.00



Ortofon Headshells

Ortofon headshells are available in four different models to satisfy a wide range of needs in terms of function and mass.  The AS Series tonearms do not come with a headshell, so if you are using a conventional half-inch mount phono cartridge, you will find a headshell here that will perfectly complement your choice of tonearm and phono cartridge.

SH-4

SH-4

The SH-4 is a basic, multi-purpose aluminum headshell that fits all Ortofon tonearms. Available in either black or silver. Please specify when ordering.

              Weight: 9.4 Grams

              Retail Price: $36.00

LH-2000

LH-2000

The LH-2000 is a basic high quality, solid aluminum headshell designed specifically for Hi-Fi use. Featuring a clean, minimalist aesthetic, the LH-2000 is great for use with a wide variety of phono cartridges.

              Weight: 12 Grams

              Mounting Distance:  Minimum- 32.5 mm, Maximum- 41.9 mm

              Retail Price:  $89.00

LH-4000

LH-4000

The LH-4000 is a solid aluminum headshell which features adjustable azimuth setting, making it a cost effective choice for use with high performance phono cartridges.

              Weight: 14.3 Grams

              Mounting Distance:  Minimum- 32.5 mm, Maximum- 41.9 mm

              Retail Price:  $99.00

LH-6000

LH-6000

The LH-6000 is a high quality, solid magnesium headshell designed specifically for the Kontrapunkt, Jubilee, Cadenza Series, and Windfeld phono cartridge models.  Its rounded front portion facilitates proper mounting for, and compliments each of these cartridges.

              Weight: 13.5 Grams

              Mounting Distance:  Minimum- 37.2 mm, Maximum- 42.5 mm

              Retail Price:  $135.00

LH-8000

LH-8000

The LH-8000 is a high quality headshell, handmade from Japanese oak tree wood.  It features a Urushi lacquer finish and a polished brass finger lift.  The highly attractive LH-8000 is perfect for use with a variety of phono cartridges.

              Weight: 8.5 Grams

              Mounting Distance:  Minimum- 32.5 mm, Maximum- 41.9 mm

              Retail Price:  $177.00

LH-9000

LH-9000

The LH-9000 is an exceptionally high quality headshell made of magnesium and carbon fiber. The LH-9000 is perfect for a variety of high-end phono cartridges. The LH-9000 features adjustable azimuth setting.

              Weight:  16.8 Grams

              Mounting Distance:  Minimum- 32.5 mm, Maximum- 41.9 mm

              Retail Price:  $240.00

LH-10000

LH-10000

The LH-10000 is a new concept in headshell design, which features construction of a high performance aluminum and zinc alloy. Designed to mate with the Ortofon TA Series tonearms, the LH-10000 features sophisticated damping using Ortofon’s special proprietary TPE (Thermo-Plastic Elastomer) compound.  The LH-10000 is fully azimuth adjustable and comes with a set of high-purity silver-plated copper headshell leads.

              Weight: 14.5 Grams

              Mounting Distance: 42 mm

              Retail Price: $629.00



ST-7 Moving Coil Step Up Transformer

The ST-7 is a dual mono design that features a permalloy shielded housing to maximize channel separation.  The coils are wound using a sandwich winding structure and only highest quality internal wiring is used.  Other features include gold plated RCA jacks and upgraded rubber isolation feet.  The ST-7 is the perfect choice for use with the Ortofon Quintet Series and with the Ortofon SPU Classic models.


ST-7 Front

ST-7 Back

SPECIFICATIONS

Recommended Cartridge Impedance:

2 Ohms to 60 Ohms

Gain At 1 kHz:

24 dB

Frequency Response:

15 Hz- 45 kHz/ ± 0 dB, -2.5 dB


Dimensions: 43.5mm high x 122mm wide x 113mm deep

Recommended Phono Preamplifier Load: 47k Ohms, 200 pF



Retail Price:  $679.00





Verto Moving Coil Step Up Transformer

The Verto is a fully dual-mono design utilizing Lundahl™ transformers, mu-metal shielding, industrial-grade circuit boards, and Teflon-insulated, gold-plated RCA jacks.  This all adds up to one of fthe quietest and cleanest sounding moving coil transformers on the market, completely devoid of crosstalk and harshness.  The stereo separation, resolution of fine detail, and tonal balance are exceptional.

The Verto can be configured in two ways by using internal jumpers:

SPECIFICATIONS

Configuration A
Configuration B

Recommended Cartridge Impedance:

5-50 Ohms
<10 Ohms

Gain At 1 kHz:

24 dB
30 dB

Frequency Response:

10 Hz- 100 kHz/ ± 1 dB
10 Hz- 80 kHz/ ± 1 dB


Dimensions: 75mm high x 125mm wide x 170mm deep



Recommended Phono Preamplifier Load:  47k Ohms, 200 pF




Retail Price:  $1017.00





ST-80 SE Moving Coil Step Up Transformer

The ST-80 SE delivers a detailed reproduction with a touch of warmth accompanied by a full bodied sound quality. Compared to most moving coil transformers currently on the market, the ST-80 SE has a larger bobbin, more layers in the Permalloy core, and more coil windings.

The transformers are magnetically shielded in a Permalloy case, which in turn is inserted into a robust 10 millimeter thick cylinder bored out of a solid aluminum block. Together with the heavy metal case this construction technique effectively isolates the transformers from resonance and vibration.

The stability of the transformer is superb thanks to its substantial weight of 1.5kg, ensuring it stays in place even when cables are attached.

The ST-80 SE is built as a true dual mono design, ensuring maximum channel separation, and weighs a substantial 1.5 kilograms.

The internal point-to-point wiring is Teflon insulated, solid-core, gold-plated, pure OFC copper. Together with high quality gold-plated RCA jacks with Teflon insulation, optimum signal transmission and integrity is insured.

The ST-80 SE is a perfect match for most high quality moving coil phono cartridges on the market today, including Ortofon’s own A90, Xpression, Windfeld, and Cadenza Series models, as well as many of the SPU models.

ST-80 SE

SPECIFICATIONS

Recommended Cartridge Impedance:

<10 Ohms

Gain At 1 kHz:

27 dB

Frequency Response:

10 Hz- 100 kHz/ ± 5 dB, -2.5 dB


Dimensions: 95mm high x 153mm wide x 100mm deep

Recommended Phono Preamplifier Load:  47k Ohms, 200 pF



Retail Price:  $1679.00




ST-M25 Mono Moving Coil Step Up Transformer

The Ortofon ST-M25 moving coil transformer is designed exclusively for use with the SPU Mono CG 25 Di MkII and SPU Mono CG 65 Di MkII phono pickup heads and will increase the voltage output of these SPU models by 12 dB, which will allow them to be used with most common moving magnet phono preamplifiers.

ST-M25
SPECIFICATIONS

Recommended Cartridge Impedance:
5 - 50 Ohms

Gain At 1 kHz:
12 dB

Frequency Response:
10 Hz- 100 kHz/ ± 1 dB

Dimensions:  39mm high x 65mm wide x 98mm deep

Recommended Phono Preamplifier Load:  47k Ohms, 200 pF

Retail Price:  $600.00



Ortofon Tonearm Cables

These high-quality tonearm cables are available in both RCA-to-RCA and DIN-to-RCA versions, including a right angle DIN version.  The copper wire models are made of a combination of five nines and six nines oxygen-free copper and feature gold-plated RCA terminations with rhodium-plated center pins.  The RCA-to-RCA version is also useful for connection of a moving coil step up transformer to a phono preamplifier.

A four nines silver cable is also available in the DIN-to-RCA configuration.  It features fully rhodium-plated terminations.

All versions are 1.2 meters in length.  These high quality cables are recommended as an upgrade for the cable provided with Ortofon tonearms, and both the DIN-to-RCA and RCA-to-RCA versions will work on nearly any turntable on the market with a removable tonearm cable.

Model 6NX-TSW1010 Model 6NX-TSW1010R Model 6NX-TSW1010L Model TSW-6000

Model 6NX-TSW1010—DIN-to-RCA: Retail Price:  $314.00

Model 6NX-TSW1010R—RCA-to-RCA: Retail Price:  $314.00

Model 6NX-TSW1010L – Right Angle DIN-to-RCA: Retail Price:  $345.00

Model TSW-6000 – DIN-to-RCA: Retail Price:  $786.00


Ortofon Headshell Leads

High quality headshell leads for all Ortofon tonearms and most other brands.

Model LW-6N Model LW-7N Model LW-800S

Models and Retail Prices:

Model LW-6N- High purity (six nines) copper $57.00

Model LW-7N- High purity (seven nines) copper   $62.00

Model LW-800S- High purity silver $130.00




DS-3 Digital Stylus Force Gauge

Includes correct-height weighing platform.

Retail Price:  $167.00





Precision Bubble Level

An indispensible tool for correct turntable setup. Features an all aluminum body and glass lens with measurement grid.

Retail Price: $51.00





Ortofon Test Record

The Ortofon Test Record provides test bands for checking channel balance as well as frequency sweep bands.  Importantly, also included are six bands for analyzing and adjusting tracking ability. This record is a helpful tool and one that everyone should own.

Retail Price:  $49.00



To learn more about the full range of Ortofon phono cartridges, tonearm, and other exceptional phono products, and to see expanded specifications and descriptions, please visit the Ortofon website.
