Click on the category below to go directly to the Oyaide product page of your choice:



Analog Interconnects and Loudspeaker Cables

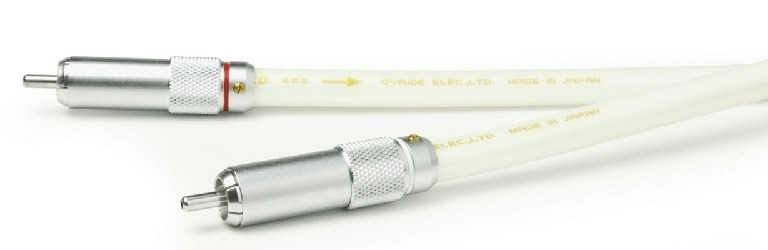

Tunami Terzo V2 Analog Interconnects

Offered with both RCA (Tunami Terzo RR V2) and XLR (Tunami Terzo XX) termination, the Tunami Terzo V2 interconnects use Oyaide’s dual shielded 102 SSC Ultra-Pure Special Surface copper cable.

The Tunami Terzo V2 cable measures 50/0.18mm, has an inner insulator of polymer polyolefin, and an outer jacket of urethane.  The outer diameter is 8.0 millimeters.  There is a spiral shield of 102 SSC copper as well.

The Tunami Terzo RR V2 features the Oyaide Genesis RCA connectors.  The Genesis offers a brass sleeve with hard chromate plating and a phosphor bronze pin with platinum and rhodium plating.  The Genesis is precision milled and is an exclusive Oyaide design.

The Tunami Terzo XX V2 features the Oyaide Focus 1 XLR connectors.  Unlike anything else on the market, the Focus 1 uses a precision ball bearing locking system and the connector tip ring as a release mechanism.

The ground pin is 3 millimeters longer than the signal pin to eliminate pops and surges when disconnecting and connecting.  The phosphor bronze contacts are plated in silver and rhodium and set into 30% glass filled PBT for isolation.

Retail Prices:
  Tunami Terzo RR V2 – 0.7 Meter Pair: $320.00
    – 1.0 Meter Pair: $360.00
    – 1.3 Meter Pair: $395.00

  Tunami Terzo XX V2 – 0.7 Meter Pair: $435.00
    – 1.0 Meter Pair:  $475.00
    – 1.3 Meter Pair $500.00

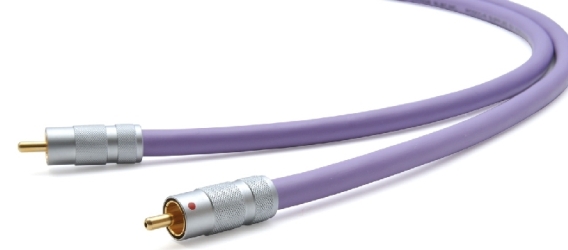

PA-02 V2 Analog Interconnects

Offered with both RCA (PA-02TR V2) and XLR (PA-02TX V2) termination, the PA-02 V2 interconnects use Oyaide’s shielded 102 SSC copper conductors.

The PA-02 V2 cable measures 30/0.18mm, has a halogen free foam polypropylene inner insulator, and an outer jacket of urethane.  The outer diameter is 8.0 millimeters.  There is a spiral shield of 102 SSC copper as well.

The PA-02TR V2 features an Oyaide-designed RCA connector that is milled from solid brass.  It has a gold plated nanotube center conductor pin PTEE low dielectric insulation.  The PA-02TX V2 uses  silver-plated Switchcraft XLR connectors.

Retail Prices:
  PA-02TR V2 – 0.7 Meter Pair: $155.00
    – 1.0 Meter Pair: $170.00
    – 1.3 Meter Pair: $185.00

  PA-02TX V2 – 0.7 Meter Pair: $155.00
    – 1.0 Meter Pair: $170.00
    – 1.3 Meter Pair: $185.00

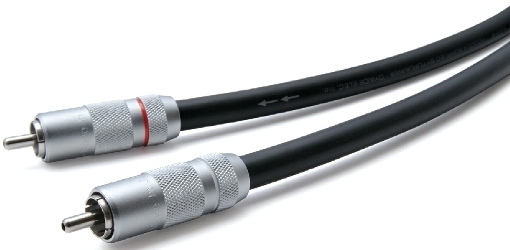

Across 750RR V2 Analog RCA Interconnects

An industry multiple award winner, the Across 750RR V2 RCA interconnects employ Oyaide’s proprietary Cross Insulated Stabilizer construction.  The conductor is multi-stranded superior purity copper, which is also proprietary to Oyaide.

The Across 750RR V2 features a polyolefin insulator and halogen-free sheath that has been developed specially for use in audio cables.  The RCA connectors used are made from RoHS compliant brass, and utilize a nanotube center conductor to provide maximum contact area.  The contacts are plated with 0.5 micron thick Rhodium to prevent corrosion. Internal insulating materials are made from low-dielectric PTEE.

Retail Prices:  0.7 Meter Pair:  $197.00
  1.0 Meter Pair: $220.00
  1.3 Meter Pair: $240.00



Across 900XX V2 Analog XLR Interconnects

The Across 900XX V2 XLR interconnect cable uses Oyaide’s proprietary double coaxial conductor design for true balanced signal transmission.  It also features Oyaide’s superior purity copper conductor material, a polyolefin insulator, and a halogen-free sheath that has been developed specially for use in audio cables.

The Oyaide Cross Insulated Stabilizer design is employed as well.  The connectors are silver-plated Switchcraft XLRs.

Retail Prices:  0.7 Meter Pair:  $320.00
  1.0 Meter Pair: $360.00
  1.3 Meter Pair: $395.00





AZ-910 Pure Silver Analog RCA Interconnects

Composed of 99.99999% pure silver, the conductor of the AZ-910 interconnect is continuously cast and is processed through a more than 20 step process of cold rolling, drawing, and annealing before it is made into the Oyaide FTVS-910 cable.

The AZ-910 features a triple shielded design composed of separate shielding layers of carbon polyethylene, copper foil, and silver-plated mesh.  This is finished with a urethane sheath.

The Oyaide silver-plated Genesis RCA connectors are used in the AZ-910.  The conductors of the Genesis are composed of phosphor bronze that is plated with platinum and rhodium.  The connector body and outer shell are both milled from a copper alloy, with the body plated with platinum and rhodium and the outer shell plated with hard chrome.  The insert is made of PTFE.

The AZ-910 will compete with any silver interconnect cable on the market in terms of performance at a fraction of the price.

Retail Prices:  0.7 Meter Pair:  $700.00
  1.0 Meter Pair: $825.00
  1.3 Meter Pair: $925.00



AR-910 Pure Silver Analog XLR Interconnects

Composed of 99.99999% pure silver, the conductor of the AR-910 interconnect is continuously cast and is processed through a more than 20 step process of cold rolling, drawing, and annealing before it is made into the Oyaide FTVS-910 cable.

The AR-910 features a triple shielded design composed of separate shielding layers of carbon polyethylene, copper foil, and silver-plated mesh.  This is finished with a urethane sheath.

The AR-910 features the Oyaide Focus 1 XLR connectors.  The Focus 1 has a pull-push locking system that is proprietary to Oyaide.  This system allows simple, one-handed installation and removal of the connector, which maintaining a secure connection when installed in an XLR jack.

The pins of the Focus 1 are precision milled from phosphor bronze, with the ground pin being 3 millimeters longer than the other pins to ensure good ground when installing and removing the connector, which eliminates pops through your speakers.

The contact pins are 99.99999% silver and rhodium plated and are set into 30% glass filled PBT.  The remainder of the Focus 1 is milled from brass and finished with nickel plating and chrome plating on the outer shell.

The AR-910 will compete with any silver XLR cable on the market in terms of performance at a fraction of the price.

Retail Prices:  0.7 Meter Pair:  $700.00
  1.0 Meter Pair: $825.00
  1.3 Meter Pair: $925.00

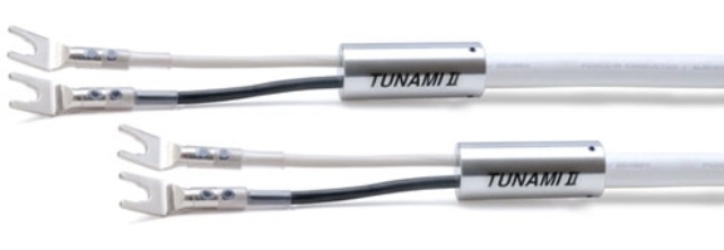

Tunami II V2 Loudspeaker Cables



The Tunami V2 loudspeaker cables are made from Oyaide Tunami Nigo wire, which features a densely re-crystalized, exceptionally high purity copper conductor that is nearly 100% free of grain boundaries.

The shielding has layers composed of a special polyolefin inner layer, a carbon polyolefin layer, and an outer layer of copper foil with a specially designed drain wire.  The outer jacket is heavy duty urethane.

The Tunami II V2 loudspeaker cable is available with either the SPSL spade (Tunami II SP-Y V2) or the SRBN banana plug (Tunami II SP-B V2).

Both the SPSL spade and the SRBN banana plug are CNC milled from phosphor bronze and are plated with silver and platinum.  Both feature proprietary design features, including Oyaide’s Dual Clamping Screw System.

Please note:  Prices shown are for single wire configuration.  Bi-wire cables and bi-wire jumpers, as well as custom cable lengths are available.  Please contact us with your specific needs for more information and a price quote.

Retail Prices:
  Tunami II SP-Y V2 – 1.5 Meter Pair:  $662.00
    – 2.0 Meter Pair: $760.00
    – 2.5 Meter Pair: $850.00
    – 3.0 Meter Pair: $950.00

  Tunami II SP-B V2 – 1.5 Meter Pair:  $650.00
    – 2.0 Meter Pair: $740.00
    – 2.5 Meter Pair: $840.00
    – 3.0 Meter Pair: $950.00

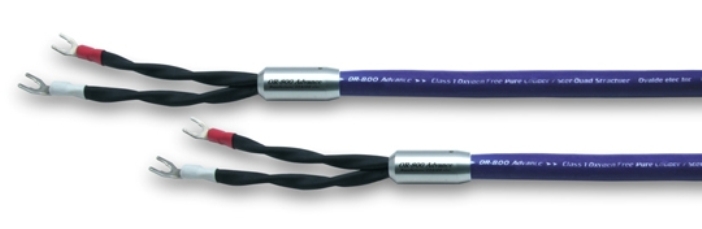

OR 800 Advance Loudspeaker Cables



A legend since its inception in 1975, the original OR 800 speaker wire is the ancestor of today’s OR 800 Advance, which is used in the Oyaide OR 800 Advance loudspeaker cables.

The OR 800 Advance wire is composed of nearly 400 UEW enamel coated copper litz wire strands in a start quad structure.  The insulation is made of an interior cotton winding with a polyetiren covering shield, and a polyolefin insulation layer on top of that.  The outer sheath is also polyolefin.

The connectors on both the OR 800 A Advance (spades) and the OR 800 B Advance (banana plugs) are of Oyaide design.  The SPYT spades are stamped from high purity copper and plated with silver and palladium.  The SLSB banana plugs have a sliver and rhodium plating.

Please note:  Prices shown are for single wire configuration.  Bi-wire cables and bi-wire jumpers, as well as custom cable lengths are available.  Please contact us with your specific needs for more information and a price quote.

Retail Prices:
  OR 800 A Advance – 1.5 Meter Pair:  $550.00
    – 2.0 Meter Pair: $650.00
    – 2.5 Meter Pair: $700.00
    – 3.0 Meter Pair: $800.00

  OR 800 B Advance – 1.5 Meter Pair:  $650.00
    – 2.0 Meter Pair: $725.00
    – 2.5 Meter Pair: $875.00
    – 3.0 Meter Pair: $950.00



Osage Audio Products is pleased to offer Oyaide as one of our product lines.  This wide range of hi-fi products offers excellent performance and reliability at a reasonable price.  If you have questions about the Oyaide product line, please call us at 573-696-3551 or email us at your convenience.  We are open late and weekends.

Oyaide products are available for purchase by telephone, in our showrooms, and some items are also available for purchase in our Online Store.
