The UNICO line offers the best of both worlds.

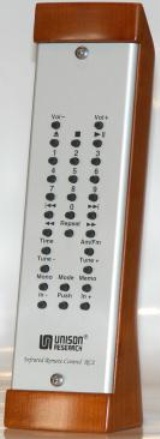

Unison Research models that are supplied with a remote control use the full-function infrared RC3. This single remote controls all functions of Unison Research and UNICO preamplifiers, integrated amplifiers, and CD player/DAC models.
Specifications:
Transport: 8829CD-KHM
D/A Converter: ESS Sabre ES9018K2M
Sampling Rate: Up to 32 bit / 384k Hz
Digital Inputs: 1 x TosLink – 16 to 24 bits/ 44.1, 48, 88.2, 96 (176.4 and
DSD64 DoP with high efficiency transmitters)
1 x USB – 16 to 32 bits/ 44.1, 48, 88.2, 96, 176.4, 192, 352.8,
384,DSD64, DSD128, DSD256
1 x Bluetooth receiver – 16 bits/ 44.1, 48; Standard: BT 3.0;
Profiles: A2DP, SSP (HID supported with Android smartphones
through SPP)
Digital Outputs: 1 x S/PDIF
Output Stage: Class A triode
Outputs: 1 x RCA
Valve Complement: 1 x ECC82 (12AU7)
Power Consumption: 100W max
Dimensions (W xDxH): 45 cm x 38 cm x 13 cm
Net Weight: 22 lbs.
Remote Control: RC3
Retail Price – Silver: $3699.00
Black: $3699.00
Specifications:
Transport: 8829CD-KHM
D/A Converter: ESS Sabre ES9018K2M
Sampling Rate: Up to 32 bit / 384k Hz
Digital Inputs: 1 x S/PDIF – 16 to 24 bits/ 44.1, 48, 88.2, 96, 176.4,
192, DSD64 (DoP)
1 x AES/EBU – 16 to 24 bits/ 44.1, 48, 88.2, 96, 176.4,
192, DSD64 (DoP)
1 x TosLink – 16 to 24 bits/ 44.1, 48, 88.2, 96 (176.4 and
DSD64 DoP with high efficiency transmitters)
1 x USB – 16 to 32 bits/ 44.1, 48, 88.2, 96, 176.4, 192, 352.8,
384,DSD64, DSD128, DSD256
1 x Bluetooth receiver – 16 bits/ 44.1, 48; Standard: BT 3.0;
Profiles: A2DP, SSP (HID supported with Android smartphones
through SPP)
Digital Outputs: 1 x S/PDIF, 1 x TosLink, 1 x AES/EBU
Output Stage: Class A parallel dual triode
Outputs: 1 x RCA, 1 x XLR
Valve Complement: 4 x ECC83 (12AX7)
Power Consumption: 100W max
Dimensions (W xDxH): 45 cm x 38 cm x 13 cm
Net Weight: 22 lbs.
Remote Control: RC3
Retail Price – Silver: $5499.00
Black: $5499.00
Specifications:
Output Power: >80W RMS into 8 Ohms
Output stage: Dynamic Class A complementary pair power MOSFET
Input stage: Triode Class A
Valve Complement: 1 x ECC83 (12AX7)
Input Sensitivity: 260mV
Input Impedance: 50k Ohms / 47 pF
Frequency Response: -0.1dB @ 10 Hz / -0.5dB @ 100k Hz
S/N: 90dB
THD: 0.15% @ 10W, 1k Hz
Feedback Factor: 10dB
Damping Factor: >50
Inputs: 4 line RCA, 1 tape RCA, 1 moving magnet phono RCA
Output: 1 tape RCA, 1 subwoofer RCA, loudspeaker
Power Consumption: 380W max
Dimensions (WxDxH): 43.5 cm x 43 cm x 9.5 cm
Net Weight: 31 lbs.
Remote Control: RC3
Retail Price – Silver: $2499.00
Black: $2499.00
Specifications:
Output Power: 95W RMS into 8 Ohms
Output stage: Dynamic Class A complementary pair power MOSFET
Input stage: Parallel Triode Class A
Valve Complement: 1 x ECC83 (12AX7)
Input Sensitivity: 260mV
Input Impedance: 50k Ohms / 47 pF
Frequency Response: -0.1dB @ 10 Hz / -0.5dB @ 100k Hz
S/N: 90dB
THD: 0.15% @ 10W, 1k Hz
Feedback Factor: 10dB
Damping Factor: >50
Inputs: 5 line RCA, 1 tape RCA
Output: 1 tape RCA, 1 subwoofer RCA (with volume control), loudspeaker
Power Consumption: 400W max
Dimensions (WxDxH): 43.5 cm x 43 cm x 9.5 cm
Net Weight: 35 lbs.
Remote Control: RC3
Retail Price – Silver: $3299.00
Black: $3299.00
Optional Phono Section: Add $199.00
Specifications:
Output Power: 100W RMS into 8 Ohms, 180W into 4 Ohms
Output Stage: Dynamic Class A super symmetric BJT complementary pair
Biasing: Dynamic Class A
Valve Complement: 2 x ECC83
Frequency Response: -1db @ 12 Hz / -3dB @ 45k Hz
Global Feedback: 0dB
THD: 0.5% @ 10W, 1k Hz
Inputs: 3 line RCA, 1 tape RCA, 1 USB (DAC)
Output: 1 tape RCA, 1 subwoofer RCA (with volume control), loudspeaker
Dimensions (WxDxH): 43.5 cm x 43 cm x 13 cm.
Remote Control: RC3
Phono Section
Input Impedance: 47k Ohm / 220pF (MM) - 100 Ohm / 440pF (MC)
Gain: MM 40dB, MC 50dB
Gain Selection: +0 dB / +10 dB
Maximum Input Level: 120 mV at 1 kHz (MM)
RIAA Equalization: Dual stage: active at low frequencies,
passive at high frequencies
THD: 0.09% / 5 mV /1 kHz (MM)
DAC Section
D/A Converter: ESS Sabre DAC ES9018K2M with jitter eliminator circuit
Type: Asynchronous USB interface compliant with USB 2.0 Audio Class,
accepts PCM up to 384kHz and DSD up to 128x (DSD 256 Ready)
Resolution: up to 32 bits
Features: Galvanic isolation between USB interface and conversion circuit,
Low phase noise clocks which reside in the “clean” supply domain
to preserve low jitter performance
Signal to Noise Ratio: 120dB (1kHz, “A” weighted, 192kHZ)
Total Harmonic Distortion: 0.003% (1kHz, -3dBFS)
Bandwidth: 0-90kHz (384kHz)
Output Voltage: 2.5Vrms
Retail Price – Silver: $3999.00
Black: $3999.00
Specifications:
Output Power: 100W RMS into 8 Ohms, 180W into 4 Ohms, 240W into 2 Ohms
Output Stage: Dynamic Class AB complementary HexFets (3 pairs per channel)
Input Stage: Class A Parallel Double Triode
Driver Stage: Class A Totem Pole
Valve Complement: 2 x ECC83, 1 x ECC81
Input Sensitivity: 860mV
Input Impedance: 21k Ohms / 300 pF
Frequency Response: -1db @ 12 Hz / -3dB @ 45k Hz
Global Feedback: 0dB
THD: 0.5% @ 10W, 1k Hz
Inputs: 3 line RCA, 1 tape RCA, 2 line XLR
Output: 1 tape RCA, 1 subwoofer RCA (with volume control), loudspeaker
Power Consumption: 550W max
Dimensions (WxDxH): 43.5 cm x 44 cm x 18 cm
Net Weight: 45 lbs.
Remote Control: RC3
Retail Price – Silver: $5999.00
Black: $5999.00
Specifications:
Output Power: 150W RMS into 8 Ohms, 220W into 4 Ohms, 300W into 2 Ohms
Output Stage: Dynamic Class AB complementary HexFets (4 pairs per channel)
Input Stage: Class A Parallel Double Triode
Driver Stage: Class A Parallel Double Triode Totem Pole
Valve Complement: 2 x ECC83, 2 x 6H30
Input Sensitivity: 860mV
Input Impedance: 24k Ohms / 100 pF
Frequency Response: -1db @ 12 Hz / -1dB @ 45k Hz
Global Feedback: 0dB
THD: 0.25% @ 10W, 1k Hz
Inputs: 3 line RCA, 1 tape RCA, 2 line XLR
Output: 1 tape RCA, 1 subwoofer RCA (with volume control), loudspeaker
Power Consumption: 550W max
Dimensions (WxDxH): 43.5 cm x 44 cm x 18 cm
Net Weight: 55 lbs.
Remote Control: RC3
Retail Price – Silver: $7499.00
Black: $7499.00

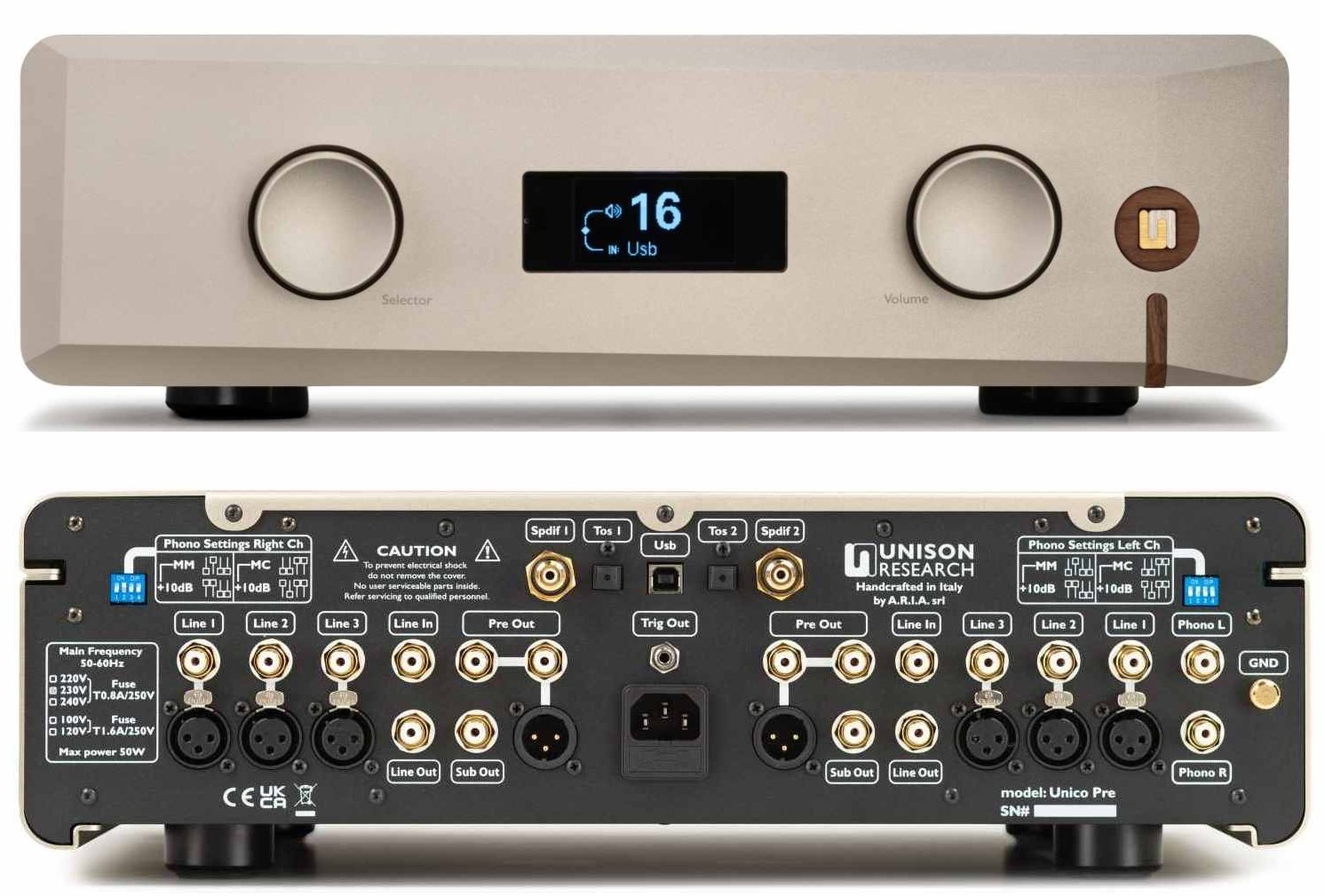

Specifications:
Fully balanced hybrid preamplifier with zero global feedback, fully Class A
operation, with vacuum tube input stage and solid state output stage
Vacuum Tubes: 2 x Gold Lion ECC83
Analog Inputs: 3 x line RCA, 3 x line XLR, 1 x MM/MC adjustable phono,
1 x line in
ESS Sabre ES9028K2M digital DSD DAC section
Digital Inputs: 1 x USB-B PCM up to 384 kHz, native DSD up to 256x,
DoP up to 128x
2 x Toslink up to 192 kHz
2 x S/PDIF up to 192 kHz
Maximum Input Voltage: 2.58 Vrms RCA, 5 Vrms XLR
Input Impedance: 20 kOhms RCA, 57 kOhms XLR
Gain: 20 dB RCA, 5dB XLR
Outputs: 2 x RCA, 1 x XLR, Dual subwoofer, 1 x Line Out
12 V remote power on trigger
Maximum Output Voltage At 1% THD+N: 8 V RCA, 6 V XLR
Output Impedance: 770 Ohms RCA, 1500 Ohms XLR
Power Consumption: 50 VA
Dimensions: 45cm wide x 43cm deep x 14cm high
Net Weight: 11 kg
Retail Price – Velvet Gold: $7499.00
Midnight Black: $7499.00

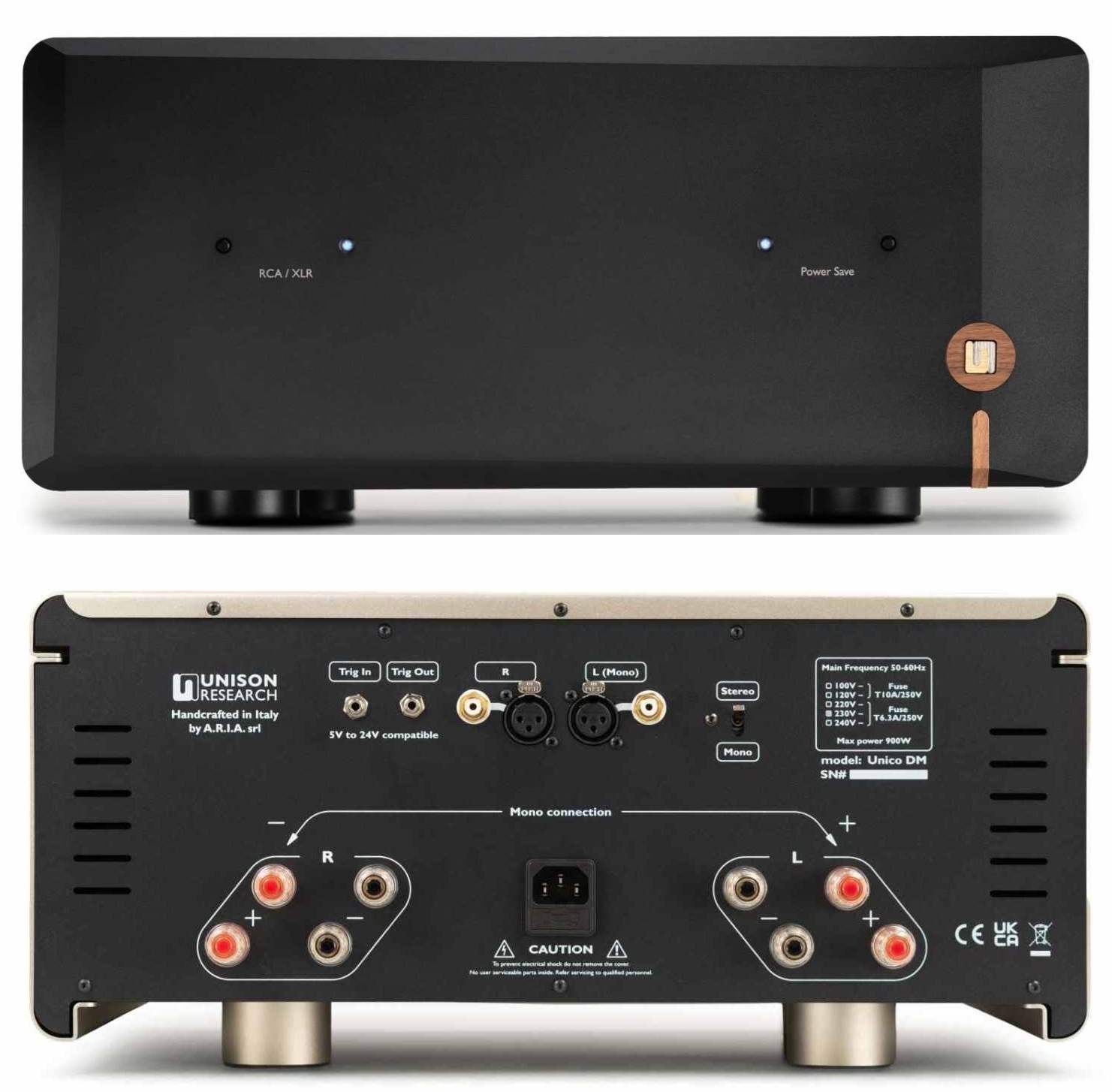

Specifications:
Input Stage: Pure Class A, dual-triode with Gold Lion ECC82
Output Stage: Class A-AB A.S.H.A. Technology with three
complementary MOSFET pairs
Stereo Output Power At 1 kHz, 1% THD: 220 W continuous at 8 Ohms
340 W continuous at 4 Ohms
370 W continuous @ 2 Ohms
Stereo Peak Output Power: 670 W at 2 Ohms
Inputs: 1 x RCA
1 x XLR
1 x remote power on trigger
Outputs: 4 + 4 binding posts for bi-wiring
1 x remote power on trigger
Dimensions): 46cm wide x 42cm deep x 21cm high
Net Weight: 33 kg
Retail Price – Velvet Gold: $10,999.00
Midnight Black: $10,999.00
|
