Sutherland Engineering products are designed and built in Kansas City, Missouri. |
Made in Kansas City; enjoyed everywhere.
The DUO takes the best of the 20/20 and combines it with the aspirations of the PhonoBlocks to make a statement level performer at a moderate price.
The Sutherland DUO provides the highly regarded circuit design of the 20/20 with each stereo channel in a separate chassis with its own power supply. This configuration results in an ultra-low noise floor and superior suppression of crosstalk. The DUO features premium parts and construction unheard of at this price point, including double thickness circuit boards.
Specifications:
Signal Gain – 40 dB, 46 dB, 52 dB, 58 db, and 64 dB
Impedance – 47k Ohms,1000 Ohms, 475 Ohms, 200 Ohms, and 100 Ohms
Dimensions Each Chassis – 17” wide x 2.5” high x 12” deep, 11 lbs. net weight
Retail Price – Switching Power Supply Version (DUO SPS): $4500.00
Retail Price – Linear Power Supply Version (DUO LPS): $5300.00
The Sutherland 20/20 Mk. II phono preamplifier features isolated,
dual-mono AC line power that is as quiet in operation as
battery-powered designs.
The 20/20 Mk. II is a revolution in the evolution of phono preamplifiers that offer the blackest
of backdrops. The need to worry over batteries is eliminated by the unique AC power
supply design. Features complete dual-mono construction, which is the hallmark
of Sutherland designs. Gain and loading are completely user adjustable by internal
jumpers.
Specifications:
Signal Gain- 40 dB/ 46 dB/ 52 dB/ 58 dB/ 64 dB
Impedance- 47.5k Ohms/ 1k Ohms/ 475 Ohms/ 200 Ohms/ 100 Ohms
Dimensions- 17” wide x 2.25” high x 12” deep, 11 lbs. net weight
Retail Price: $2500.00
The Sutherland 20/20 Mk. II Phono Preamplifier is also available with an outboard linear power supply.
With the 20/20 Mk. II External Linear Power Supply, the already quiet operation of the 20/20 Mk. II phono preamplifier is even quieter. The 20/20 Mk. II External Linear Power Supply also ensures the steadiest and most robust current delivery possible to insure lifelike transient response.
20/20 Mk. II With External Linear Power Supply Retail Price: $3000.00
The Sutherland Insight features an ultra-low noise floor and tremendous dynamic capabilities.
The new Insight phono preamplifier from Sutherland Engineering is the new reference in performance for reasonably-price phono preamplifiers. Adjustable for both moving magnet and moving coil phono cartridges, the Insight offers complete electrostatic and magnetic interference shielding, gold-plated headers and shunts, separate and completely isolated power supply and audio sections, and cold-roll steel chassis and casework construction with a baked-on epoxy finish.
Also included is a true dual-mono circuit layout, as well as Wima polypropylene/film capacitors and Dale-Vishay metal film resistors in the audio section. Both the configuration setting contacts and the RCA jacks are gold-plated. An IEC socket is installed for the use of any IEC power cord.
Specifications:
Signal Gain- 40 dB/ 45 dB/ 50 dB/ 55 dB/ 60 dB
Impedance- 47k Ohms/ 10k Ohms/ 1k Ohms/ 200 Ohms/ 100 Ohms
Dimensions- 17” wide x 2.5” high x 12” deep, 11 lbs. net weight
Retail Price – Internal Switching Power Supply Version (Insight SPS): $1600.00
Retail Price – Internal Linear Power Supply Version (Insight LPS): $2000.00
The Sutherland KC Vibe Mk. II phono preamplifier breaks the price barrier and the sound quality barrier.
Featuring true dual mono circuit topology and easy, user adjustable resistive loading and gain settings, the KC Vibe Mk. II offers true high-end performance at a price well below what you may expect to pay for a U.S. made, hand-built phono preamplifier.
Specifications:
Signal Gain- 40 dB/ 45 dB/ 50 dB/ 55 dB/ 60 dB
Impedance- 47k Ohms/ 1k Ohms/ 475 Ohms/ 200 Ohms/ 100 Ohms
Dimensions- 11” wide x 2” high x 9” deep, 6 lbs. net weight
Retail Price: $1000.00
The Sutherland little LOCO Mk. II borrows from the technology of the PHONO LOCO to offer the benefits of trans-impedance phono preamplifier design at a lower price.
Sutherland’s little LOCO Mk. II is a trans-impedance design that works by amplifying the current output of the phono cartridge. The little LOCO Mk. II is available in both a stereo and a mono configuration.
The little LOCO Mk. II is designed to work optimally with phono cartridges that have a very low internal impedance. Use of this phono preamp requires that your tonearm cable have a shield that is connected to a separate ground wire that connects to the ground lug of the little LOCO Mk.II and that does not connect to the RCA plug shell, and that a floating connection to both phono cartridge coil terminals exists. Please be sure that your tonearm cable meets this requirement.
Please consult with us about your particular situation to ensure that the little LOCO Mk. II is the right choice for your system.
Specifications:
Operating Voltage Requirements – 105 to 120 VAC, 12 watts
Dimensions – 17” wide x 2” high x 13” deep, 15 lbs. net weight
Retail Price – Silver Faceplate with Amber LED: $4300.00
Retail Price – Black Faceplate with Blue LED: $4400.00
The Sutherland TZ Vibe trans-impedance phono preamplifier breaks new ground.
Trans-impedance phono preamplifiers have been expensive and have required balanced tonearm cables, up until now. The Sutherland TZ Vibe uses the basic audio circuitry of the KC Vibe along with the trans-impedance circuitry of the little LOCO to make a cost effective and user friendly phono preamplifier that also offers the benefits of trans-impedance design.
The TZ Vibe has RCA inputs and will work with any known phono cable. No longer is a balanced phono cable necessary. The TZ Vibe will also work well with moving coil phono cartridges that have a higher internal impedance than previous phono preamplifiers of this type.
Specifications:
Operating Voltage Requirements – 86 to 250 VAC, 5 watts
Dimensions – 12.5” wide x 6.5” high x 14.5” deep, 6 lbs. net weight
Retail Price: $1600.00

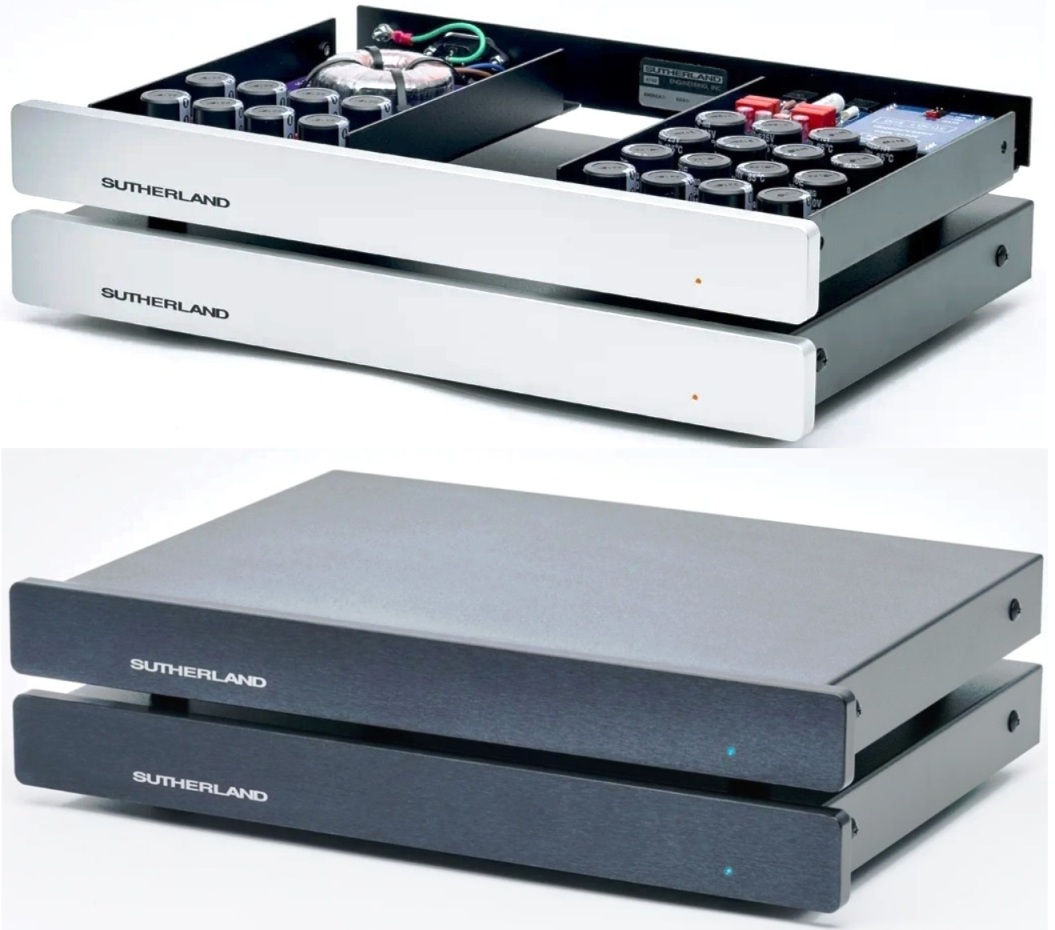

The Sutherland DOS LOCOS Trans-Impedance Phono Preamplifier offers reference-level performance for a price well below the competition.
Click here for a PDF download the DOS LOCOS owner’s manual.
Offered with faceplate choices of sliver with amber LED or black with blue LED, the DOS LOCOS is a dual chassis trans-impedance phono preamplifier that is intended for use with low output moving coil phono cartridges with an internal impedance of 20 Ohms or less. Signal gain is adjustable by internal jumpers with three settings.
Pricing shown is for pairs. Pricing for on chassis for use in one channel mono setups is half the pair price.
Retail Price Per Pair – Silver with Amber LED: $11,000.00
Retail Price Per Pair – Black with Blue LED: $11,000.00 |
