High performance low and high output moving coil phono cartridges at a reasonable price by Hana.
Built entirely in Japan by master craftsmen, Hana moving coil phono cartridges are manufactured by legendary Japanese hi-fi company Excel Sound Corporation. Hana represents Japanese craftsmanship at its finest.
Hana phono cartridges are offered in two models, with each model providing the option of either a high output version or a low output version. This ensures that you can choose a model and version that not only satisfies your pocketbook, but also one that ensures that it will be a perfect match for your phono preamplifier.
Both versions of both Hana models feature outstanding performance specifications and class leading build quality.
We at Osage Audio Products are proud to have been chosen as a retailer for Hana phono cartridges. If you have questions about Hana phono cartridges or would like to purchase one, please call us at 573-696-3551 or email us at your convenience. Hana phono cartridges can also be purchased through our Online Store.
Contact us about package pricing including Hana cartridges, as well as trade-in allowances for any cartridge against the price of a new Hana model.
 |
|
 |
|
 |

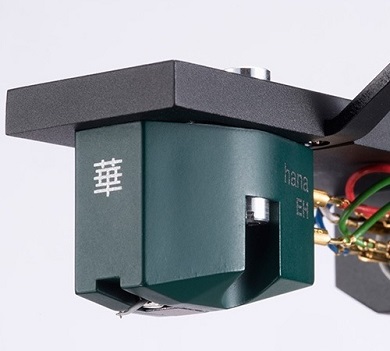

Hana EH/ EL |
|

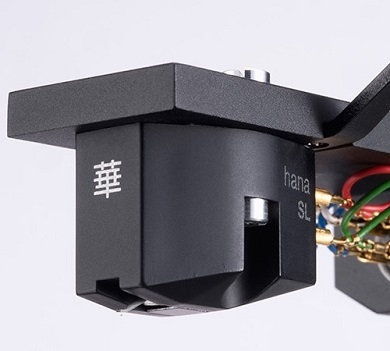

Hana SH/ SL |
|
Hana MH/ ML |
| |
|
|
|
|
| |
|
 |
|
|
| |
|
Hana Umami Red |
|
|
MODEL |
EH |
EL |
SH |
SL |
MH |
ML |
Umami Red |
| |
|
|
|
|
|
|
|
| Stylus Type |
Elliptical |
Elliptical |
Nude Shibata |
Nude Shibata |
Microline |
Microline |
Microline |
| |
|
|
|
|
|
|
|
| Cantilever Type |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
Boron |
| |
|
|
|
|
|
|
|
| Output Voltage |
2.0mV |
0.5mV |
2.0mV |
0.5mV |
2.0mV |
0.4mV |
0.4mV |
| |
|
|
|
|
|
|
|
| Channel Separation |
25dB@1kHz |
25dB@1kHz |
28dB@1kHz |
28dB@1kHz |
30dB@1kHz |
30dB@1kHz |
30dB@1kHz |
| |
|
|
|
|
|
|
|
| Channel Balance |
<2dB@1kHz |
<2dB@1kHz |
<1.5dB@1kHz |
<1.5dB@1kHz |
<1dB@1kHz |
<1dB@1kHz |
<0.5dB@1kHz |
| |
|
|
|
|
|
|
|
| Recommended Tracking Force |
2.0 Grams |
2.0 Grams |
2.0 Grams |
2.0 Grams |
2.0 Grams |
2.0 Grams |
2.0 Grams |
| |
|
|
|
|
|
|
|
| Frequency Response |
15 – 25000Hz |
15 – 25000Hz |
15 – 32000Hz |
15 – 32000Hz |
12 – 45000Hz |
12 – 45000Hz |
15 – 50000Hz |
| |
|
|
|
|
|
|
|
| Internal Impedance In Ohms |
130@1kHz |
30@1kHz |
130@1kHz |
30@1kHz |
130@1kHz |
8@1kHz |
6@1kHz |
| |
|
|
|
|
|
|
|
| Recommended Resistive Loading |
47k Ohms |
>400 Ohms |
47k Ohms |
>400 Ohms |
47k Ohms |
>100 Ohms |
>60 Ohms |
| |
|
|
|
|
|
|
|
| Weight |
5.0 Grams |
5.0 Grams |
5.0 Grams |
5.0 Grams |
9.0 Grams |
9.0 Grams |
10.5 Grams |
| |
|
|
|
|
|
|
|
| Body Color |
Moss Green |
Moss Green |
Black |
Black |
Moss Green |
Moss Green |
Urushi Red |
| |
|
|
|
|
|
|
|
| Retail Price |
$475.00 |
$475.00 |
$750.00 |
$750.00 |
$1200.00 |
$1200.00 |
$3950.00 |
The Hana SL low output moving coil model is also available in a true mono configuration for playback of mono records with less crosstalk than that of a stereo phono cartridge.
Retail Price: $750.00
We at Osage Audio Products are proud to have been chosen as a retailer for Hana phono cartridges. If you have questions about Hana phono cartridges or would like to purchase one, please call us at 573-696-3551 or email us at your convenience. Hana phono cartridges can also be purchased through our Online Store.
Contact us about package pricing including Hana cartridges, as well as trade-in allowances for any cartridge against the price of a new Hana model.
|
