SOTA products are engineered and manufactured in the USA.



SOTA offers a turntable model for every performance level and every budget.

When J. Gordon Holt reviewed the SOTA Star Sapphire Series III for the August 1987 issue of Stereophile magazine, many people thought analog music reproduction was dead.  Three decades later there are more choices in quality analog front end equipment than there have ever been.

While some may have forgotten about SOTA turntables, their loyal following has continued, and under the leadership of Kirk and Donna Bodinet, the SOTA line has grown to include both budget and true cutting edge models.  At every step along the way the quality of design and construction, and the quality of performance of the SOTA line has continued to improve.

Osage Audio Products is proud to offer the complete line of SOTA turntables, as well as their LP Cleaner record cleaning machine.  These are high quality, American-made products that are supported by one of the best service organizations in the hi-fi business.  Nearly every SOTA turntable ever built is upgradable and can be professionally serviced and repaired.  SOTA turntables truly offer lasting value.

Osage Audio Products offers a range of tonearms that work well with SOTA turntables.  We can also provide you with a proper arm board to mount your existing tonearm on a new SOTA turntable.  Contact us to discuss your particular needs.

PLEASE NOTE THE FOLLOWING –
1.  SOTA turntables are generally built to order.  Please allow four to six weeks for delivery.

2.  Along with the standard finishes offered, most SOTA models are available in a nearly infinite number
     of real wood veneer choices.  Call us to discuss your options.

3.  Osage Audio Products offers the full line of SOTA accessories, parts, and upgrades for your existing
     SOTA turntable.  Please call or email us for information.

For more information or to purchase a SOTA turntable or LP Cleaner or any SOTA accessories or parts, call us at 573-696-3551 or email us.



Standard Finishes

Millennia – Semi-Gloss Black
Cosmos – High Gloss Black
Nova/Star – American Cherry, American Walnut, Natural Oak, Dark Oak, Black Oak
Sapphire/Jewel – American Cherry, American Walnut, Natural Oak, Dark Oak, Black Oak
Satellite – American Cherry, American Walnut, Natural Oak, Dark Oak, Black Oak
Comet – Textured Black, High Gloss Black, American Cherry, American Walnut, Natural Oak, Dark Oak, Black Oak
Moonbeam – American Cherry, American Walnut, Natural Oak, Dark Oak, Black Oak



MILLENNIA

The all-new open-chassis MILLENNIA Vacuum Turntable System is SOTA’s latest assault on the State-Of-The-Art in LP playback equipment.

The MILLENNIA features an ultra-rigid, unified sub-assembly with a critically damped one piece sub-chassis, which is milled from a one inch thick solid aluminum plate. Unlike the COSMOS and previous top-of-the-line SOTA models the MILLENNIA incorporates a spring-less, hanging four-point balanced-mass suspension system. The multi-layer suspension utilizes a variety of materials including Axidynea®, which is a unique energy absorbing viscoelastic polymer, to provide excellent outside energy rejection at critical midrange frequencies.

The MILLENNIA uses SOTA’s internally damped, multi-layer 15-pound vacuum platter system with the Vinyl Format platter mat. It incorporates SOTA’s inverted bearing assembly design, utilizing a polished sapphire thrust plate with zirconium bearing. In the vacuum equipped version, the SOTA self-sensing record-hold-down system uses a high-tech pneumatic sensing circuit to provide vacuum clamping and maintenance of exact low-pressure vacuum hold-down.

The MILLENNIA’s synthesized sine-wave, 24 pole A/C Stepper Motor drive system is housed in a separate, high-mass enclosure and is powered by SOTA’s Electronic Flywheel power supply. Additional damping has been added to this enclosure, as well as adjustable feet for leveling.

The MILLENNIA turntable includes the Cosmos arm board and SOTA Reflex Clamp. The Cosmos arm board is multi-layers of acrylic, aluminum, and lead in a constrained mode and is high polished. The ultimate mechanical clamping system, the SOTA Reflex Clamp assures intimate contact between the record and the mat over its entire surface.

Technical Specifications:
            Rumble:   Less than -60db unweighted (10cm/sec @ 1000Hz)
            Wow and Flutter:   Less than .04% RMS
            Suspension:   Hanging 4-point viscoelastic balanced 22 pound sub-chassis
            Platter System:   Individually balanced 15.2 lb one-piece cast platter with internal damping, lead flywheel ring,
                                          SOTA Vinyl Format Platter Mat, molded silicone vacuum lip (vacuum hold-down version)
                                          and anti-static Groove Damper Mat
            Vacuum Hold Down System:   Electronic-sensing with clamping pressure of 3.0” Hg, +/- 0.2” Hg
            Bearing Shaft:   Hardened steel, hand matched to sintered bronze sleeves
            Main Bearing:   Polished sapphire disc thrust pad; zirconium ball thrust point
            Drive System:   Belt driven with synthesized sine-wave drive, advanced A/C Stepper Motor
            Speeds:   33-1/3 and 45 RPM, electronically switchable with fine tuning
            Weight:   44 lb. turntable only; 20 lb. each vacuum pump and motor unit
            Dimensions:   8-1/2" to top of Reflex Clamp, 26" W x 15" D

Retail Prices:
            Vacuum Record Hold Down Version - $10,500.00

            Without Vacuum Record Hold Down - $9200.00



COSMOS

The COSMOS takes ultimate rigidity and mass damping in sub-assembly, arm mounting, motor coupling, and bearing structure to new absolutes. The COSMOS chassis is hung on a floating seismic platform of four-point spring suspension.  The chassis utilizes a one-piece sub-assembly milled from solid aluminum as its foundation.  This chassis design is so effective that the platter, motor and arm block are mounted directly on the suspended sub-chassis.  This provides unvarying geometry between the motor and the turntable.  The dampened sub-chassis and multi-layered platter isolate the arm and record surface from motor vibrations.

The COSMOS utilizes SOTA’s internally dampened, multi-layer 15-pound vacuum platter system with the Vinyl Format mat, which exactly matches the mechanical impedance of record vinyl, making the record, mat and platter function as a single, non-resonant entity.

The COSMOS platter incorporates SOTA’s inverted bearing assembly design, utilizing a polished sapphire thrust plate with zirconium bearing. The SOTA self-sensing record-hold-down system uses a high-tech pneumatic sensing circuit to provide vacuum clamping and maintenance of exact low-pressure vacuum hold-down. The synthesized sine-wave drive 24-pole A/C stepper motor, designed for critical computerized motion use, has electronic speed control and speed change.

The COSMOS Vacuum Turntable includes the Cosmos arm board for universal tonearm compatibility, and the Reflex Clamp.  The Cosmos arm board is multi layers of acrylic, aluminum and lead in a constrained mode and is highly polished.

The ultimate mechanical clamping system, the SOTA Reflex Clamp, assures intimate contact between the record and the mat over its entire surface. The clear beveled-seamed acrylic dust cover with tension hinges is available as an additional cost option.

The Cosmos may also be upgraded to the new top-of-the-line turntable, the Millennia.

Technical Specifications:
            Rumble:   Less than -60db unweighted (10cm/sec @ 1000Hz)
            Wow and Flutter:   Less than .04% RMS
            Suspension:   Tuned 4-point stretched-spring sub-chassis, 2.55 Hz frequency
            Platter System:  Individually balanced 12 lb one-piece cast platter with internal damping, lead flywheel ring,
                                         SOTA Vinyl Format Platter Mat, molded silicone vacuum lip and anti-static Groove Damper Mat
            Vacuum Hold Down System:   Electronic-sensing with clamping pressure of 3.0” Hg, +/- 0.2” Hg
            Bearing Shaft:   Hardened steel, hand matched to sintered bronze sleeves
            Main Bearing:   Polished sapphire disc thrust pad; zirconium ball thrust point
            Drive System:   Belt driven with synthesized sine-wave drive, advanced A/C Stepper Motor
            Speeds:   33-1/3 and 45 RPM, electronically switchable with fine tuning
            Weight:   44 lb. turntable only; 20 lb. each vacuum pump and motor unit
            Dimensions:   8-1/2" to top of dust cover, 20-1/4" W x 16-1/2" D

Retail Prices:
            Vacuum Record Hold Down Version - $8000.00

            Without Vacuum Record Hold Down - $6800.00



NOVA/ STAR

The NOVA and STAR both feature SOTA’s self-sensing vacuum hold down system standard.  This, along with SOTA’s time-tested hanging spring suspension and 22 pound sub-chassis, make for a vanishingly black noise floor and exceptional vibration and resonance control.

Both models feature a dampened, one-piece cast platter and SOTA’s composite “bolt-through” arm board as well as the SOTA Vinyl Format Platter Mat.

Both the NOVA and the STAR come standard with the SOTA Reflex Clamp.  Optional finishes and a hinged dust cover are available.



Technical Specifications:
            Rumble:   Less than -60db unweighted (10cm/sec @ 1000Hz)
            Wow and Flutter:   Less than .04% RMS
            Suspension:   Tuned 4-point stretched-spring sub-chassis, 2.55 Hz frequency
            Platter System:  Individually balanced 14 lb one-piece cast platter with internal damping, lead flywheel ring,
                                         SOTA Vinyl Format Platter Mat, molded silicone vacuum lip, and anti-static Groove Damper Mat
            Vacuum Hold Down System:   Electronic-sensing with clamping pressure of 3.0” Hg, +/- 0.2” Hg
            Bearing Shaft:   Hardened steel, hand matched to sintered bronze sleeves
            Main Bearing:   Polished sapphire disc thrust pad; zirconium ball (NOVA) or hardened chrome steel ball (STAR) thrust point
            Drive System:   Belt driven with synthesized sine-wave drive, double regulated, advanced A/C Motor
            Speeds:   33-1/3 and 45 RPM, electronically switchable with fine tuning
            Weight:   44 lb. turntable only; 20 lb. each vacuum pump and motor unit
            Dimensions:   7-1/2" to top of dust cover, 20-1/4" W x 16-1/2" D

Retail Price:
            Includes COSMOS Vinyl Format Platter, Composite Arm Board, and Reflex Clamp - $4600.00



SAPPHIRE/ JEWEL

The SERIES V SAPPHIRE and the SERIES V JEWEL share nearly all the same design objectives.  The main difference lies in the suspension.  The SAPPHIRE features SOTA’s traditional four-point spring suspension, while the JEWEL features a four-point elastic suspension.  This visco-elastic suspension is similar to our top-of-the-line MILLENNIA™ model.

Both models feature a 22 pound balanced sub-chassis, SOTA’s inverted bearing, acrylic Supermat, and a bolt-through arm board design.  The Sapphire comes standard with the I Clamp, which is available as an accessory with the Jewel.  A dust cover is available for both models.  A good upgrade for either the SAPPHIRE or the JEWEL is SOTA’s composite arm board.

The SAPPHIRE and JEWEL are non-vacuum hold down models.

Technical Specifications:
            Rumble:   Less than -60db unweighted (10cm/sec @ 1000Hz)
            Wow and Flutter:   Less than .04% RMS
            Suspension:   Tuned 4-point stretched-spring (Sapphire) or visco-elastic (Jewel) sub-chassis, 2.55 Hz frequency
            Platter System:   Individually balanced 14 lb one-piece cast platter with internal damping, lead flywheel ring, SOTA  acrylic Supermat
            Bearing Shaft:   Hardened steel, hand matched to sintered bronze sleeves
            Main Bearing:   Polished sapphire disc thrust pad; hardened chrome steel ball thrust point
            Drive System:   Belt driven with synthesized sine-wave drive, double regulated, advanced A/C Motor
            Speeds:   33-1/3 and 45 RPM, electronically switchable with fine tuning
            Weight:   44 lb. turntable only
            Dimensions:   7-1/2" to top of dust cover, 20-1/4" W x 16-1/2" D

Retail Prices:
            SAPPHIRE (Includes Wood Arm Board and I Clamp) - $3100.00

            JEWEL (Includes Wood Arm Board) - $2300.00
                           As Above With S202 Tonearm Included - $2700.00



SATELLITE

Utilizing the special characteristics of high density polymers, the SATELLITE takes the COMET design format and adds tonearm flexibility (using the standard SOTA arm boards), a four-point seismic platform with a visco-elastic suspension and SOTA's traditional cabinetry.  The multi-layer suspension utilizes a variety of unique energy absorbing materials to provide excellent outside energy rejection. The SATELLITE offers superb high-fidelity playback at a very affordable price.

The SATELLITE may be upgraded all the way to the NOVA performance level.





Technical Specifications:
            Rumble:   Less than -65db unweighted (10cm/sec @ 1000Hz)
            Wow and Flutter:   Less than .1% RMS
            Suspension:   Hanging four-point elastic
            Platter System:   Two layers of 3/8" Plexiglas sandwiching energy absorbing dampening materials with interface mat
            Bearing Shaft:   Polished steel
            Main Bearing:   Hardened chrome steel ball in Turcite® spindle sleeve
            Drive System:   Belt driven A/C synchronous motor
            Speeds:   33-1/3 and 45 RPM
            Weight:   28 lb. turntable only
            Dimensions:   7-1/2" to top of dust cover, 20-1/4" W x 16-1/2" D

Retail Prices:
            Turntable System Only - $1500.00
            With S202 Tonearm Included - $1900.00



COMET

SOTA has taken an entirely different approach to the COMET platter design, by using special high-density polymers in its construction. The thick, massive platter of the COMET incorporates dampening material sandwiched between two layers of precision-machined 3/8" Plexiglas.  A mat is included for the best possible record-to-mat interface.

And because of the energy-dissipative property of polymers, various types of polymer materials are used throughout the COMET, not only for the platter, but also for the sub-platter and bearing cup assembly.  The spindle/bearing assembly of the COMET is a state-of-the-art design, and one of the keys to its outstanding performance.

The Drive System of the COMET consists of a high-density polymer sub-platter driven by a 24-pole AC synchronous motor originally designed for ultra-precise computer use. The motor drives a precision-ground, low-tension belt which provides a vibration-free drive system for the rotating assembly of the turntable.

The Chassis and Cabinet Damping System of the COMET continues the design theme of isolation from noise and spurious vibrations.  Environmental isolation has been accomplished by way of a monolithic, massive internally dampened cabinet, which effectively isolates the turntable system.  Additionally, special energy-absorbing leveling feet are utilized and incorporate a proprietary visco-elastic polymer pad to damp vibrations.

The COMET turntable includes the precision S-303 tonearm, which is a one-piece, tapered arm tube design which yields exceptional performance by offering maximum rigidity, optimal coupling of cartridge to arm, and cancellation of  tonearm resonance.  It utilizes precision ground bearings for minimal friction and exceptional durability.  The S303 tonearm offers adjustable anti-skating, damped cueing, and can accommodate a wide range of phono cartridges.

Options for the COMET include a hinged dust cover and the I Clamp.

Technical Specifications:
            Rumble:   Less than -65db unweighted (10cm/sec @ 1000Hz)
            Wow and Flutter:   Less than .1% RMS
            Platter System:   Two layers of 3/8" Plexiglas sandwiching energy absorbing dampening materials with interface mat
            Bearing Shaft:   Polished steel
            Main Bearing:   Hardened chrome steel ball in Turcite® spindle sleeve
            Drive System:   Belt driven A/C synchronous motor
            Speeds:   33-1/3 and 45 RPM
            Weight:   26 lb. turntable and tonearm
            Dimensions:   6-1/4" to top of dust cover, 18-1/4" W x 14-1/4" D

Retail Price: $1600.00



MOONBEAM

The design of the SOTA MOONBEAM carefully identifies and addresses each variable that undermines pure signal retrieval. The result is an elegant and cost-effective solution of the highest quality.  Hand-crafted with care in the USA, the MOONBEAM is unmatched in performance in its price category.

The main platter and the sub-platter of the MOONBEAM is made of a special high-density polymer.  The precision-machined platter is virtually inert and is therefore extraordinarily effective in dissipating the resonant energy generated by the record-playing process.  The unique platter design is responsible for the superb fidelity at an affordable price.  To further neutralize the resonant LP, an energy damping interface mat is also provided.

The spindle/bearing assembly of the MOONBEAM is a state-of-the-art design, and one of the keys to its outstanding performance.  The bearing cup is manufactured of a high-tech material called Turcite™, which is a Teflon-impregnated, self-lubricating polymer designed specifically for ultra-precise bearing applications, and is ideally suited to the turntable spindle/bearing function.  As a result, the MOONBEAM bearing has a nearly unlimited life and is significantly quieter than even the most expensive and precise metal-to-metal bearing assembly.

The drive system of the MOONBEAM consists of a sub-platter driven by a 24-pole AC synchronous motor designed for ultra-precise computer use. The motor drives a precision-ground, low tension belt.  The MOONBEAM is equipped for both 33 and 45 RPM speeds.

The chassis of the MOONBEAM continues the design theme of isolation from noise and spurious vibrations.  The MOONBEAM accomplishes this task by way of its solid layering of an internally damped chassis, which effectively isolates the turntable system.  Additionally, the MOONBEAM utilizes special energy-absorbing leveling feet to further damp vibrations.  Furniture-quality wood veneer enhances the MOONBEAM, with standard finish options including natural, dark, or black oak, American cherry and American walnut.

The included SOTA S202 precision tonearm is a straight, fixed-headshell tonearm with internal damping. This design offers maximum rigidity, optimal coupling of cartridge to arm, and minimizes spurious resonances.

Options for the MOONBEAM include a hinged dust cover and the I Clamp.

Technical Specifications:
            Rumble:   Less than -65db unweighted (10cm/sec @ 1000Hz)
            Wow and Flutter:   Less than .1% RMS
            Platter System:   Two layers of 3/8" Plexiglas sandwiching energy absorbing dampening materials with interface mat
            Bearing Shaft:   Polished steel
            Main Bearing:   Hardened chrome steel ball in Turcite® spindle sleeve
            Drive System:   Belt driven A/C synchronous motor
            Speeds:   33-1/3 and 45 RPM
            Weight:   18 lb. turntable and tonearm
            Dimensions:   6" H x 18-1/4" W x 14-1/4" D

Retail Price:  $850.00

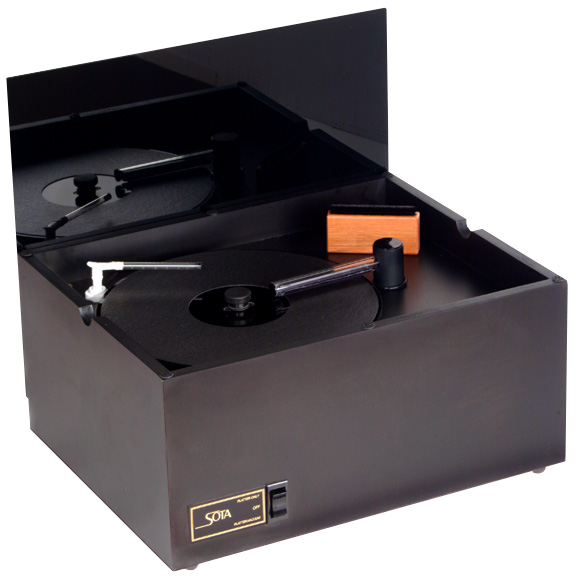

LP RECORD CLEANER

LP Record Cleaner

The SOTA LP RECORD CLEANER has been carefully designed and manufactured to provide years of trouble-free, high-quality record cleaning.  Its single switch operation and automatic features make the SOTA RECORD CLEANER easier to use than other machines on the market.

The LP RECORD CLEANER features a sturdy, hand crafted, scratch resistant, attractive black laminate cabinet with a watertight interior and a hand polished black lift-off acrylic cover. The platter is a waterproof polymer with a soft PVC mat that is easy to keep clean.  The LP RECORD CLEANER also features a manual fluid dispensing system with one reservoir that has easy one-hand operation.

SOTA’s Vari-Port™ fluid pickup assembly design achieves linear vacuum pressure across the record’s surface.   A large 32 ounce capacity waste fluid tank incorporates an exterior level indicator for simple gauging of when to empty the tank.

The LP CLEANER’S features a convenient storage area for the detachable A/C cord and the included hardwood bristle brush.  Eight ounces of SOTA’s alcohol-based Crystal Fluid is also included.

An optional cooling fan can be included on the LP CLEANER.  This feature, along with the 32 ounce waste fluid tank allow for the machine to be used for continuous cleaning of records.

Please note that the SOTA LP CLEANER is for use with 12 inch records only.

Weight:   30 lbs.
Dimensions:   8-1/2" H x 19" W x 14-1/2” D

Retail Prices:
            Standard Base Model - $1050.00

            With Electric Cooling Fan - $1150.00



Cost Saving Record Cleaning Packages

Record cleaning packages that include cleaning fluids and record care supplies can be built around the SOTA LP CLEANER.  We offer two package content choices, which are detailed below.  You can also build your own personalized package.

You can choose from among the full line of Audio Intelligent Vinyl Solutions and Listener Select products to build your customized package, and Mobile Fidelity record brushes and record sleeves, and SOTA record cleaning parts and supplies are also available.  Call us at 573-696-3551 or email us to discuss your specific needs.

Package #1 Includes:
1 x SOTA LP CLEANER Record Cleaning Machine
1 x AIVS 32 ounce Ultimate Cleaning Kit with Your Choice of Second Step Formula
1 x AIVS 32 ounce Premium One-Step Formula No. 6
1 x AIVS 16 ounce Premium Record Cleaner Formula No. 15
5 x Listener Select Record Cleaning Brushes for 12 Inch Records

Package Retail Value (Non-Cooling Fan Machine):  $1332.00    Your Price:  $1050.00

Package Retail Value (With Cooling Fan):  $1432.00    Your Price:  $1150.00



Package #2 Includes:
1 x SOTA LP CLEANER Record Cleaning Machine
2 x AIVS 32 ounce Premium Record Cleaner Formula No.15
2 x AIVS 32 ounce Ultra-Pure Water
2 x Listener Select Record Cleaning Brushes for 12 Inch Records
4 x 50 count packages of Mobile Fidelity inner record sleeves

Package Retail Value (Non-Cooling Fan Machine):  $1306.00    Your Price:  $1050.00

Package Retail Value (With Cooling Fan):  $1406.00    Your Price:  $1150.00



Osage Audio Products offers the full line of SOTA accessories, parts, and upgrades for your existing SOTA turntable.  Please call or email us for information.

For more information or to purchase a SOTA turntable or LP Cleaner or any SOTA accessories or parts, call us at 573-696-3551 or email us.
