Click on the category below to go directly to the QUAD product page of your choice:

Quad’s selection of moving coil loudspeakers is designed to meet the needs of audiophiles, home theater enthusiasts, and compact lifestyle system customers alike.

Most notable for their ESL loudspeakers, Quad also offers an extensive range of moving coil loudspeakers. The models range from compact, self-powered monitor loudspeakers to two-and-a-half-way floor standing designs, to highly-configurable home theater systems. Whether you need a loudspeaker to use with your home computer or portable digital device or a loudspeaker system that will allow the explosions in your favorite action movie to shake the walls in your living room, you will find a high-quality, beautifully-finished solution here.

The Quad L-ite loudspeakers are designed to let consumers made the choice of individual speakers or a complete home theater loudspeaker system convenient and easy. These compact models include everything you need to build a satisfying and budget-minded home theater system. For smaller areas where big sound is still desired, the L-ite PLUS LCR Soundbar will meet the need.

Fans of computer audio and portable digital audio will like the friendly interface and gorgeous sound of the L Active line of powered monitors. The 9L Active features one self-contained amplifier per speaker and the 11L Active and 12L Active models feature two amplifiers per speaker. The L Active line offers serious performance.

The Quad L2 Series loudspeakers are high-performance solutions for both home audio and home theater. Monitors and floor standers; subwoofers and center channel speakers, they’re all here. These models offer serious performance levels for both high-end audio systems and the very finest home theaters.

Osage Audio Products is honored to have been appointed a retail dealer for the exceptional line of Quad electronics and loudspeakers. These products are well-built and well-supported, reasonably-priced, and are among the best-sounding on the market at their price points. We invite you to call us at 573-696-3551or email us at customer_service@audiointelligent.com to learn more about Quad and how Quad hi-fi products can improve your listening experience.

Learn more about Quad and their products by visiting the Quad website. Product manuals and brochures are available there as PDF downloads. Be sure to read about all of the awards and recommendations for the current and historical Quad products while you are there.

For more information on the Quad Performance Series Loudspeakers, please visit the Quad website.



Quad L-ite PLUS LCR Soundbar Specifications

 L-ite Plus LCR all-in-one home theater speaker shown in Black finish.
  Format- 2-Way; Sealed Cabinet

  Bass/Bass-Mid Driver- 100 mm

  Tweeter Driver- 25 mm

  Recommended Amplifier Power- 30 W - 120 W

  Nominal Impedance- 4 ohms

  A/V Shielding- Yes

  Voltage Sensitivity- 84 db (2.83 @ 1M)

  Frequency Response- 85 Hz – 24 kHz (-6 dB)

  Crossover Frequency- 3.3 kHz

  Dimensions (H x W x D)- 130 mm x 1030 mm x 105 mm

  Finish Color- Black

Retail Price- $749.00 Each


Quad L-ite Series Loudspeaker Specifications

L-ite Satellite/ Monitor Loudspeakers

 L-ite Series monitor shown in Rosewood finish. Grille included but not shown.
  Format- 2- Way; Ported Cabinet

  Bass Driver- 100 mm

  Tweeter Driver- 25 mm Soft Dome

  Recommended Amplifier Power- 30 W – 120 W, 75 W Continuous

  Nominal Impedance- 6 ohms

  Frequency Response- 70 Hz – 24 kHz (-6 dB) – 32 kHz (-10 dB)

  Crossover Frequency- 2.2 kHz

  Dimensions (H x W x D)- 225 mm x 135 mm x 160 mm

Retail Price:
  $499.00 Per Pair
Specify Black, Cherry, or Rosewood finish when ordering.

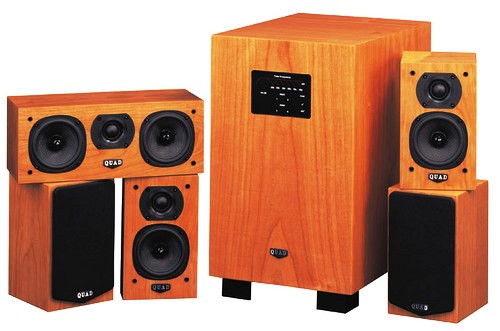

L-ite Series 5.1 home theater loudspeaker set shown in Cherry finish.

L-ite Centre Center Channel Loudspeaker

  Format- 2- Way; Sealed Cabinet

  Bass Driver- 2 x 100 mm

  Tweeter- 25 mm Soft Dome

  Recommended Amplifier Power- 30 W – 150 W, 85 W Continuous

  Nominal Impedance- 6 ohms

  Frequency Response- 80 Hz – 24 kHz (-6dB) – 32 kHz (-10 dB)

  Crossover Frequency- 2.5 kHz

  Dimensions (H x W x D)- 135 mm x 340 mm x 160 mm

Retail Price: $399.00 Each
Specify Black, Cherry, or Rosewood finish when ordering.



L-ite Sub Subwoofer

  Format- 300 WRMS Powered; Sealed Enclosure

  Bass Driver- 250 mm Tri-Lam

  Line Input Sensitivity- 250 mV at 100 W

  Line Input Impedance- 10 kOhms

  Boundary Frequency Response- 25 Hz – 95 Hz

  Crossover Frequency Range- 35 Hz – 85 Hz

  Average Maximum Output- 113 dB at 1 Meter

  Dimensions (H x W x D)- 485 mm x 288 mm x 425 mm

Retail Price: $1099.00 Each
Specify Black, Cherry, or Rosewood finish when ordering.


L-ite Complete 5.1 Loudspeaker System

Retail Price: $2199.00
Specify Black, Cherry, or Rosewood finish when ordering.

Call or email us for complete system pricing for other configurations.



Quad L Active Series Powered Monitor Loudspeakers Specifications

12L Studio Active Powered Monitor Loudspeakers

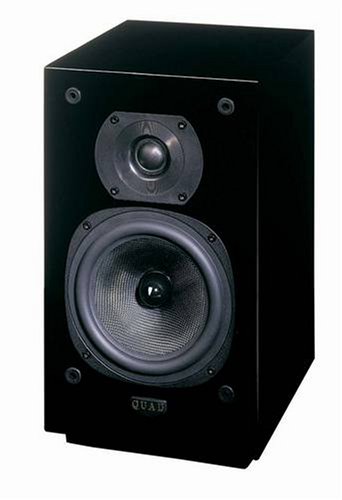

Model 12L Active Studio Monitor shown in Black finish.
  Format- 2- Way

  Bass Driver- 170 mm

  Tweeter Driver- 25 mm Soft Dome

  Frequency Response- 55 Hz – 20 kHz (-3 dB)
    45 Hz – 24 kHz (-10 dB)

  Crossover Frequency- 2.2 kHz

  Power Amplifier Output- 60 WRMS/ 40 WRMS (Dual Amplifiers with
    Patented Quad Current Dumping Technology)

  Short Term Peak SPL- 110 dB

  Dimensions (H x W x D)- 357 mm x 205 mm x 308 mm

  Net Weight- 9.7 kg

  Finish Color- Black

Retail Price: $1649.00 Per Pair


Quad 11L Classic Monitor Loudspeakers

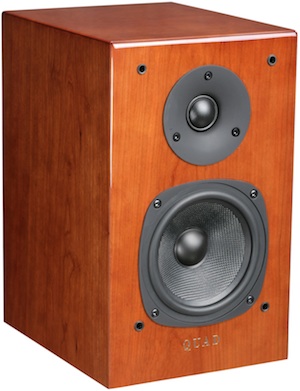

Model 11L Classic shown in
Cherry finish.  Grille included but not shown.
  Format- 2- Way, Ported Cabinet

  Bass Driver- 125 mm

  Tweeter Driver- 25 mm Soft Dome

  Sensitivity- 87 dB (1 watt/ 1meter)

  Nominal Impedance- 8 ohms (Minimum 4.2 Ohms)

  Frequency Response- 48 Hz – 22 kHz (-6 dB) – +/- 3 dB

  Dimensions (H x W x D)- 310 mm x 190 mm x 243 mm

Retail Price: $649.00 Per Pair

Specify Cherry or Rosewood finish when ordering.


Quad L2 Series Loudspeakers Specifications

11L2 Monitor Loudspeakers

Model 11L2 loudspeaker shown in Cherry finish. Grille included but not shown.
  Format- 2- Way; Ported Cabinet

  Bass Driver- 125 mm

  Tweeter Driver- 25 mm Soft Dome

  Recommended Amplifier Power- 30 W – 150 W, 85 W Continuous

  Nominal Impedance- 6 ohms

  Frequency Response- 45 Hz – 28 kHz (-6 dB) – 32 kHz (-10 dB)

  Crossover Frequency- 2.2 kHz

  Dimensions (H x W x D)- 310 mm x 190 mm x 243 mm

Retail Price: $799.00 Per Pair
Specify Black, Cherry, or Rosewood finish when ordering.


12L2 Monitor Loudspeakers

Model 12L2 loudspeaker shown in Cherry finish. Grille included but not shown.
  Format- 2- Way; Ported Cabinet

  Bass Driver- 170 mm

  Tweeter Driver- 25 mm Soft Dome

  Recommended Amplifier Power- 30 W – 200 W, 100 W Continuous

  Nominal Impedance- 6 ohms

  Frequency Response- 45 Hz – 28 kHz (-6 dB) – 32 kHz (-10 dB)

  Crossover Frequency- 2.2 kHz

  Dimensions (H x W x D)- 330 mm x 205 mm x 253 mm

Retail Price: $1199.00 Per Pair
Specify Black, Cherry, or Rosewood finish when ordering.



21L2 Floor Standing Loudspeakers

Model 21L2 floor standing loudspeaker shown in Cherry finish. Grille included but not shown.
  Format- 2- Way; Ported Cabinet

  Bass Driver- 170 mm

  Tweeter Driver- 25 mm Soft Dome

  Recommended Amplifier Power- 40 W – 200 W, 125 W Continuous

  Nominal Impedance- 6 ohms

  Frequency Response- 35 Hz – 28 kHz (-6 dB) – 32 kHz (-10 dB)

  Crossover Frequency- 2.2 kHz

  Dimensions (H x W x D)- 780 mm x 205 mm x 263 mm

Retail Price: $1499.00 Per Pair
Specify Black, Cherry, or Rosewood finish when ordering.


22L2 Floor Standing Loudspeakers

Model 22L2 floor standing loudspeaker shown in Black finish. Grille included but not shown.
  Format-

2.5- Way; Ported Tweeter and Bass;
    Sealed Mid/ Bass Enclosure

  Bass Driver- 170 mm

  Mid/ Bass Driver- 170 mm

  Tweeter Driver- 25 mm Soft Dome

  Recommended Amplifier Power- 50 W – 300 W, 150 W Continuous

  Nominal Impedance- 6 ohms

  Frequency Response- 30 Hz – 28 kHz (-6 dB) – 32 kHz (-10 dB)

  Crossover Frequencies- 150 Hz and 3 kHz

  Dimensions (H x W x D)- 850 mm x 205 mm x 278 mm

Retail Price: $1899.00 Per Pair
Specify Black, Cherry, or Rosewood finish when ordering.


L2 Centre Center Channel Loudspeaker

L2 Series center channel loudspeaker shown in Black finish. Grille included but not shown.
  Format- 2- Way; Sealed Enclosure

  Bass Driver- 2 x 125 mm

  Tweeter Driver- 25 mm Soft Dome

  Recommended Amplifier Power- 30 W – 120 W, 70 W Continuous

  Nominal Impedance- 6 ohms

  Frequency Response- 90 Hz – 28 kHz (-6 dB) – 32 kHz (-10 dB)

  Crossover Frequency- 2.0 kHz

  Dimensions (H x W x D)- 163 mm x 428 mm x 206 mm

Retail Price: $599.00 Each
Specify Black, Cherry, or Rosewood finish when ordering.

Osage Audio Products is honored to have been appointed a retail dealer for the exceptional line of Quad electronics and loudspeakers. These products are well-built and well-supported, reasonably- priced, and are among the best-sounding on the market at their price points. We invite you to call us at 573-696-3551or email us at customer_service@audiointelligent.com to learn more about Quad and how Quad hi-fi products can improve your listening experience.

Learn more about Quad and their products by visiting the Quad website. Product manuals and brochures are available there as PDF downloads. Be sure to read about all of the awards and recommendations for the current and historical Quad products while you are there.
