Click on the category below to go directly to the QUAD product page of your choice:

The Quad Elite Series applies Quad’s culmination of knowledge of solid state and software-based electronics to create a truly high-performance and high-value product line.

Quad Elite Series

The Quad Elite Series was developed by building upon the strongest design features of its 99 Series predecessors, but with the utmost care and testing taken in selecting only the best internal audiophile-class components, highly specified transformers, multi-layer circuit boards and the latest, most advanced software available.  In doing so, Quad has retained their classic house sound in the Elite Series, but has increased clarity and definition, thereby ensuring that the quality of the musical performance is more accessible and that it conveys the actual message of the artist.

Intended as a synergistic, fully integrated system, each Elite Series model is designed to perform its best when paired with other Elite Series products, but you will find that the Elite Series disc players, amplifiers, and preamplifier provide gorgeous, rich, detailed music with nearly any high-end product on the market today.

The Quad Elite Series pieces are encased with sleek, modern aluminum casework, finished in deep grey with a matte black front panel which maintains Quad's bold but stylishly elegant aesthetic.  They exude the quality of build, design, and performance that is synonymous with the name Quad.

Osage Audio Products is honored to have been appointed a retail dealer for the exceptional line of Quad electronics and loudspeakers. These products are well-built and well-supported, reasonably- priced, and are among the best-sounding on the market at their price points. We invite you to call us at 573-696-3551or email us at customer_service@audiointelligent.com to learn more about Quad and how Quad hi-fi products can improve your listening experience.



Elite CDS Compact Disc Player

The Elite CDS features the reliable Sony KM-313AAM transport mechanism and a Crystal DAC and has 24 bit/ 96 kHz resolution.  Also featured are TosLink and SPDIF digital outputs.

Specifications

  Frequency Response-  20 Hz – 20 kHz (+0 dB/ -0.7 dB)

  Line Output Level-  2.4 volts RCA/ 4.8 volts Quadlink

  Signal to Noise Ratio- >116 dB at 24 bit resolution, “A” Weighted

  Crosstalk-      <-120 dB at 1 kHz

Retail Price:  $1199.00


Elite CDP Compact Disc Player/ Preamplifier

The Elite CDP features the same drive unit as the CDS and offers 24 bit/ 192 kHz resolution.  The Elite CDP adds the useful features of variable volume output from the RCA out jacks as well as 3 SPDIF inputs on RCA jacks and 3 TosLink inputs along with one each SPDIF and TosLink digital outputs.

Specifications

  Frequency Response-  20 Hz – 20 kHz (+0 dB/ -0.7 dB)

  Line Output Level-  2.4 volts RCA/ 4.8 volts Quadlink

  Signal to Noise Ratio- >116 dB at 24 bit resolution, “A” Weighted

  Crosstalk-      <-120 dB at 1 kHz

Retail Price:  $1799.00


Elite FM Tuner

Designed to work exclusively with the Elite Preamplifier, the Elite FM Tuner offers exceptional performance and ease of use at an affordable price.

Specifications

  Tuning Range- 88 MHz – 108 MHz

  Sensitivity-  Mono:  18 bDuV
    Stereo:  18 dBuV

  IF Rejection-       >100 dB

  Pilot Tone Supression-   >60 dB

  Antenna Input-    2 x 75 Ohms Unbalanced

Retail Price:  $1099.00


Elite Preamplifier

The Elite Preamplifier features 3 line level RCA inputs, plus one record loop and one high quality phono section input, which is switchable between moving magnet and moving coil settings.  The Elite Preamplifier comes complete with a 43 key remote control and is the perfect control center for any high performance music system.

Specifications

  Frequency Response-
       Line Inputs-     0.1 Hz – 70 kHz (+/- 3 dB)
       Phono Section Inputs-  20 Hz – 20 kHz (+/- 0.5 dB)

  Phono Section:
       Signal To Noise Ratio-   78 dB (“A” Weighted, Ref. 775 uV)
       Sensitivity-   MM:  1 mV, 3 mV, 7.75 mV
    MC:  100 uV, 300 uV, 775 uV
       Total Harmonic Distortion-   MM:  <0.05%
    MC:  <0.01%

  Output Level-   RCA:  775 mV (3.3 V maximum)
    AMPBUS:  2 V (8 V maximum)

  Output Impedance-  RCA:  100 Ohms
    AMPBUS:  20 Ohms

  Tape Output Impedance-  330 Ohms

Retail Price:  $1299.00


Elite Stereo Amplifier

The Elite Series Stereo Amplifier features both RCA and Quad AMPBUS inputs and offers a maximum output of 90 watts into 8 Ohms and 120 Watts into 4 Ohms.  Hi quality 5-way binding posts are supplied to accommodate any speaker cable termination.

Specifications

  Frequency Response-  0.2 Hz – 75 kHz (+/- 3 dB)

  Total Harmonic Distortion- <0.005% at 70 W, 1 kHz

  Signal To Noise Ratio-   <-110 dB (20 Hz – 20 kHz)

  Input Sensitivity-   RCA:  775 mV
     AMPBUS:  2.0 V

  Input Impedance-    RCA:  33k Ohms
    AMPBUS:  10K Ohms
Retail Price:  $1149.00


Elite Mono Amplifier

The Elite Series Mono Amplifier offers 150 watts of power into 8 Ohms and 220 watts into 4 Ohms.  Like the Elite Stereo Amplifier, the Elite Mono has a usefully small footprint and has both RCA and AMPBUS inputs and 5-way binding posts.  The Elite Mono is powerful enough to comfortably drive most loudspeakers on the market.

Specifications

  Frequency Response-    0.2 Hz – 80 kHz (+/- 3 dB)

  Total Harmonic Distortion-  <0.005% at 100 W, 1 kHz

  Signal To Noise Ratio- <-110 dB (20 Hz – 20 kHz)

  Input Sensitivity-    RCA:  775 mV
    AMPBUS:  2.0 V

  Input Impedance-   RCA:  33k Ohms
    AMPBUS:  10k Ohms

Retail Price:  $2199.00 Per Pair

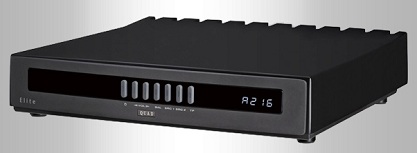

Elite INT Integrated Amplifier

Quad’s entry in the affordably priced, solid state integrated amplifier world is a sure winner.  The Elite INT offers 80 watts per channel of power and comes equipped with two RCA inputs plus tape loop and a preamp out jack.

Specifications

  Line Input Gain-  37 dB Maximum

  Input Sensitivity- 300 mV, 775 mV

  Output Voltage- 300 mV, 775 mV (3.3 volts maximum)

  Output Impedance-  100 Ohms

  Tape Out Impedance-   330 Ohms

  Frequency Response- 20 Hz – 20 kHz (+/-0.3 dB)

  Total Harmonic Distortion- <0.005% (at 1 kHz), <0.05% ( 20 Hz – 20 kHz)

  Signal-To-Noise Ratio- 105 dB

Retail Price:  $1899.00

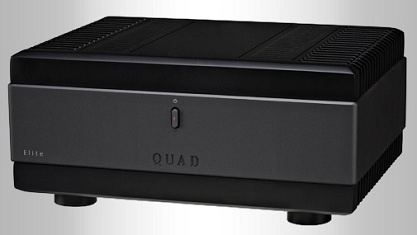

Elite QSP Stereo Amplifier

The Elite QSP is the successor to the legendary Quad 909 solid state power amplifier.  The QSP improves upon the performance of the 909 with upgraded parts throughout. It offers 140 watts per channel of power using Quad’s patented Current Dumping Technology.

 The QSP is one of the true values in high performance audio today.

Specifications

  Signal Gain-  33 dB

  Frequency Response- DC – 29 kHz (+/-1 dB)

  Total Harmonic Distortion-  <0.004% at 100 W, 1 kHz

  Signal-To-Noise Ratio-    >108 dB (20 Hz – 20 kHz), Ref. 140 W

  Damping Factor-   230

  Input Sensitivity
           RCA- 760 mV (for max output)
           AMPBUS-  2.0 V (for max output)

  Input Impedance
           RCA- 15 kOhms
           AMPBUS-  10 kOhms

Retail Price:  $1899.00

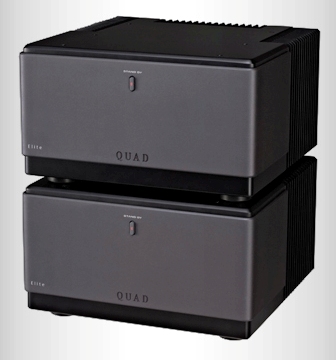

Elite QMP Mono Amplifier

Boasting a whopping output of 260 watts of Quad’s Current Dumping Technology power into eight Ohms, the Elite QMP mono amplifiers are designed to drive the most demanding of loudspeaker loads.

Specifications

  Signal Gain-  33 dB

  Frequency Response- 10 Hz – 50 kHz (+/-1dB)

  Total Harmonic Distortion-  <0.005% at 100 W, 1kHz

  Signal-To-Noise Ratio-    >105 dB (20 Hz – 20 kHz)

  Input Sensitivity
           RCA- 845 mV (for max output)
           AMPBUS-  2.0 V (for max output)

  Input Impedance
           RCA- 15 kOhms
           AMPBUS-  10 kOhms

Retail Price: Coming Soon

Osage Audio Products is honored to have been appointed a retail dealer for the exceptional line of Quad electronics and loudspeakers. These products are well-built and well-supported, reasonably- priced, and are among the best-sounding on the market at their price points. We invite you to call us at 573-696-3551or email us at customer_service@audiointelligent.com to learn more about Quad and how Quad hi-fi products can improve your listening experience.

Learn more about Quad and their products by visiting the Quad website.   Product manuals and brochures are available there as PDF downloads. Be sure to read about all of the awards and recommendations for the current and historical Quad products while you are there.
