Click on the category below to go directly to the QUAD product page of your choice:

The Quad Classic Series pays homage to the look of yesteryear and the design philosophy of Peter Walker, but does so with the latest in parts and construction technology.

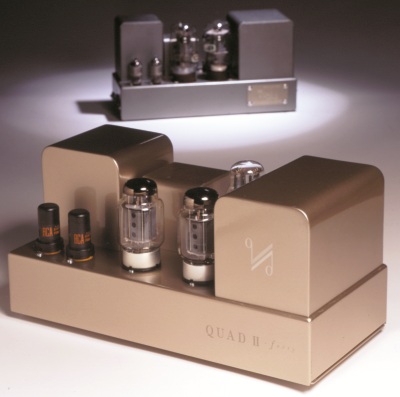

The Quad II- Forty is the modern-day
descendant of the Quad II amplifier

Beginning with the Quad II in 1953, Quad has been at the forefront of setting the standard for hi-fi amplification quality. Today, just as then, Quad continues to innovate and make improvements and refinements to their amplification products that reveal more detail, nuance, and power in the music that they reproduce. They have also continued to add more selection to their product line. There are ample choices in the Quad line to fit any taste, space, and consumer budget and have those choices provide a fully satisfying listening experience.

Times may change, products and brands may come and go, but since 1936 Quad has established itself as a brand that can be depended upon, and one that offers true high-end performance and true high value.

Osage Audio Products is honored to have been appointed a retail dealer for the exceptional line of Quad electronics and loudspeakers. These products are well-built and well-supported, reasonably- priced, and are among the best-sounding on the market at their price points. We invite you to call us at 573-696-3551or email us at customer_service@audiointelligent.com to learn more about Quad and how Quad hi-fi products can improve your listening experience.

Built for today’s audiophile, the Classic Series mono vacuum tube amplifiers are an excellent investment in good sound.

The Quad Classic Series products offer the very best technology and build quality in valve amplification while remaining faithful to Peter Walkers designs and ideals of offering good, solid design, build, and sound quality.

Offered in power output levels of 15, 40, and 80 watts, the Classic Series mono amplifiers all share the same rugged build, proven circuitry, and sublime sound.


 Quad II- Classic mono amplifier
shown without tube cage.

Quad II- Classic Vacuum Tube Mono Power Amplifier Specifications

  Power Output- 15 Watts RMS

  Total Harmonic
Distortion at 700 Hz-		 0.3% at 12 Watts

  Residual Hum and Noise- Better than -90 db

  Frequency Response- 10 Hz – 20k Hz (+0.2 db)

  Damping Factor- 11.75 at 700 Hz

  Power Consumption- 90 Watts Maximum

  Loudspeaker Taps- 8 Ohms

  Tube Complement- 2 x EF86 Input, 2 x KT66 Output,
    1 x GZ34 Rectifier

Retail Price: $3099.00 Per Pair

Quad II- Forty Vacuum Tube Mono Power Amplifier Specifications

  Power Output- 40 Watts RMS

  Total Harmonic
Distortion at 700 Hz-		 0.3% at 40 Watts, 0.03% at 1 Watt

  Residual Hum and Noise- Better than -80 db

  Frequency Response- 10 Hz – 30k Hz (+0 db/ -0.5 db)

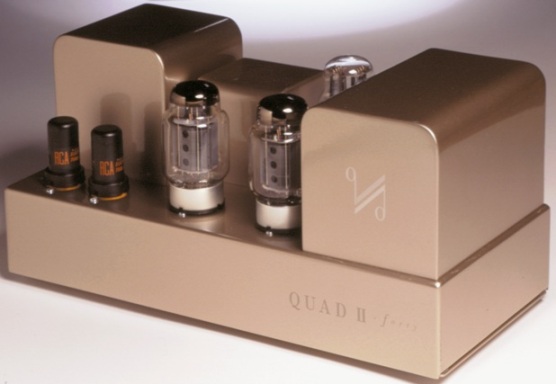

        Quad II - Forty
shown without tube cages.
  Damping Factor- 20 at 700 Hz

  Power Consumption- 180 Watts Maximum

  Loudspeaker Taps- 4 and 8 Ohms

  Tube Complement- 2 x 6SH7 Input, 2 x KT88 Output,
    1 x 5U4G Rectifier

Retail Price: $4499.00 Per Pair


Quad II- Eighty Vacuum Tube Mono Power Amplifier Specifications

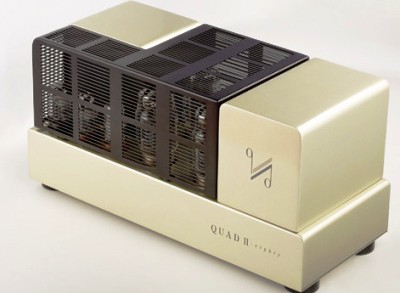

 Quad_II - Eighty mono amplifier
shown with tube cages installed.
  Power Output- 80 Watts RMS

  Total Harmonic Distortion at 700 Hz- 0.3% at 40 Watts, 0.5% at 80 Watts

  Residual Hum and Noise- Better than -94 db

  Frequency Response- 10 Hz – 30k Hz (+0 db/ -0.5 db)

  Damping Factor- 16 at 700k Hz

  Power Consumption- 180 Watts Maximum

  Loudspeaker Taps- 4 and 8 Ohms

  Tube Complement- 2 x 6SH7 Input, 4 x KT88 Output,
    1 x 5U4G Rectifier

Retail Price: $8999.00 Per Pair


To complement the Classic Series mono amplifiers, Quad offers the QC line stage and phono stage preamplifiers.

In addition to this selection of mono power amplifiers, Quad also offers the QC- Twenty-Four preamplifier with optional solid state phono section and the QC- Twenty-Four P vacuum tube phono preamplifier.

The QC- Twenty-Four preamplifier features a 6111 twin triode tube. This tube is so reliable that it is hard-wired onto the circuit board. It also features two buffered recording loops and a balance control!

The balance control allows for fine adjustment of channel balance of up to 12 decibels in either direction. A plug-in solid stage phono section is also available as an option on the QC- Twenty-Four.

The QC- Twenty-Four offers vanishing low distortion, exception band width, and beautiful sound at a reasonable price.

The QC- Twenty-Four P vacuum tube phono preamplifier is a stand-alone phono stage that offers vanishingly low distortion measurements and the choice of variable output level. It is suitable for most moving magnet and moving coil phono cartridges on the market.

Quiet operation, flat frequency response, and wide bandwidth operation are what the QC- Twenty-Four P have to offer; all at a very reasonable price.


Quad QC- Twenty-Four Vacuum Tube Stereo Preamplifier Specifications

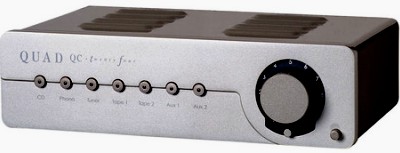

Quad QC- Twenty-Four Preamplifier.
  Total Harmonic Distortion
at 1 Volt RMS-		 0.2%, 0.02% at 1 Watt

  Residual Hum and Noise- Better than -80 db

  Frequency Response- 5 Hz – 50k Hz (+0 db/ -0.5 db)

  Damping Factor- 16 at 700k Hz

  Line Stage Gain- 5 db

  Recommended Minimum Load- 50k Ohms

  Inputs- 5 x Line Level,
    2 x Buffered Tape Loops

  Tube Complement- 1 x 6111 Twin Triode

Optional Solid State Phono Board Specifications

  Input Impedance- Moving Magnet Setting: 47k Ohms
    Moving Coil Setting: 100 Ohms

  Voltage Gain- Moving Magnet Setting: 2 mV
    Moving Coil Setting: 200 uV

Retail Prices-
  Line Stage Only: $1099.00
  Line Stage with Solid State Phono Board: $1379.00


Quad QC- Twenty-Four P Vacuum Tube Phono Preamplifier Specifications

Quad QC- Twenty-Four P Phono Stage Preamplifier
  Inputs- 1- Selectable for Moving Magnet
    or Moving Coil Phono Cartridge

  Outputs- 1 Fixed Line Level
    1 Variable Line Level

  Total Harmonic Distortion- 0.08% (A Weighted)

  Frequency Response- 20 Hz – 20k Hz (+ 0 db/ -0.5 db)

  Hum and Noise- Better Than 60 db

  Input Impedance- Moving Magnet Setting: 47k Ohms
    Moving Coil Setting: 10 Ohms

  Stage Gain- High Sensitivity: MM- 1.3 mV/ MC- 130 uV
    Medium Sensitivity: MM- 2.6 mV/ MC- 260 uV
    Low Sensitivity: MM- 5.2 mV/ MC- 520 uV

  Tube Complement- 4 x 6111 Twin Triode

Retail Price: $2199.00


Quad’s II- Classic Integrated Amplifier: Incredible, versatile performance in a smart package.

An integrated amplifier can be the best solution when you need one box to take care of amplification, control, and RIAA equalization and amplification, rather than having two or three boxes. But an even better reason for choosing a Quad II Classic Integrated Amplifier is that it just sounds great. The II- Classic features all of the smart engineering and exceptional build quality that typify Quad. This integrated is a sure winner for anyone who likes great sound.


Quad II- Classic Vacuum Tube Stereo Integrated Amplifier Specifications

The Quad II- Classic Integrated Amplifier features a built-in phono preamplifier and tape loop.
  Power Output- 25 Watts per Channel into 8 Ohms

  Total Harmonic Distortion
at 700 Hz-		 0.06% at 15 Watts

  Residual Hum and Noise- Better than -98 db

  Frequency Response- 20 Hz – 20k Hz (+0 db/ -0.5 db)

  Crosstalk- Better than 75 db

  Voltage Gain- 34 db

  Inputs- 3 x Line Level, 1 x MM/MC Selectable
    Phono, 1 x Buffered Tape Loop

  Tube Complement- 4 x ECC88, 2 x ECC83, 4 x KT66

Retail Price: $5999.00


Osage Audio Products is honored to have been appointed a retail dealer for the exceptional line of Quad electronics and loudspeakers. These products are well-built and well-supported, reasonably- priced, and are among the best-sounding on the market at their price points. We invite you to call us at 573-696-3551or email us at customer_service@audiointelligent.com to learn more about Quad and how Quad hi-fi products can improve your listening experience.

Learn more about Quad and their products by visiting the Quad website. Product manuals and brochures are available there as PDF downloads. Be sure to read about all of the awards and recommendations for the current and historical Quad products while you are there.
