Beautifully crafted, the Vienna Acoustics Concert Grand Series epitomizes the goals of unparalleled quality of construction and of quality of sound in today’s loudspeaker market.
 |
|
 |
Cherry |
Piano Black |
 |
|
 |
Rosewood |
Piano White |

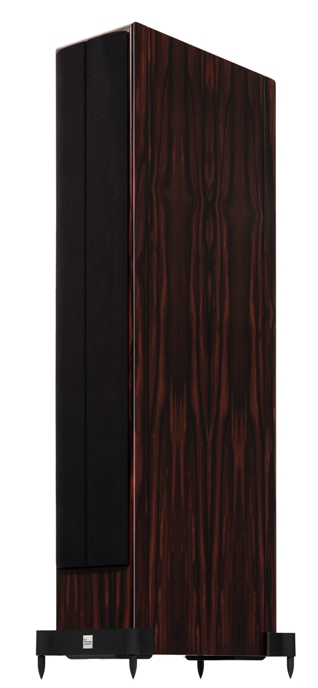

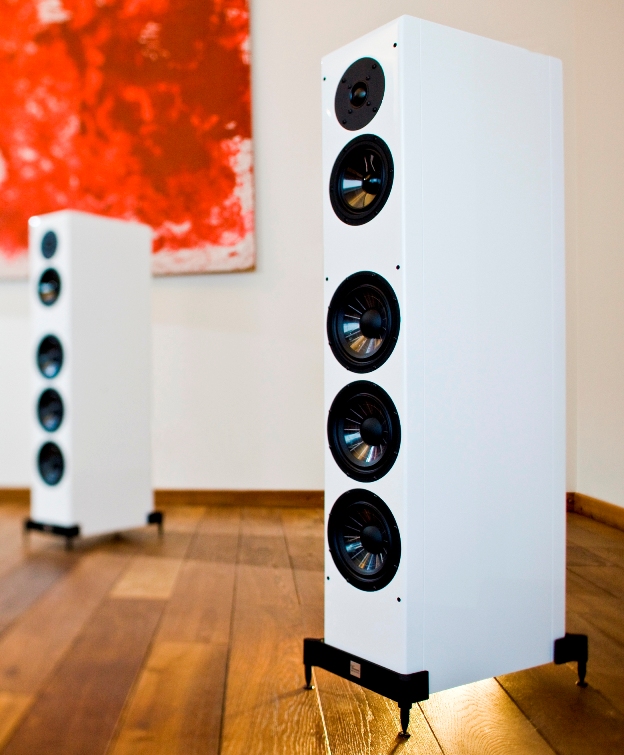

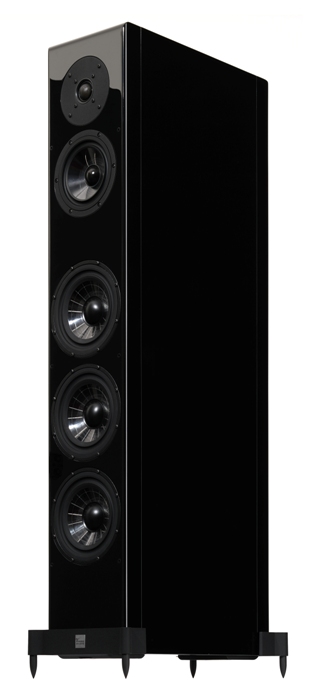

| Technical Data |
|
| |
|
|
| |
System Type: |
3-way |
| |
Frequency Response: |
28 Hz – 22 kHz |
| |
Bass Drivers: |
3 x 7” XPP Spider-Cone |
| |
Midrange Driver: |
6” X3P Cone |
| |
Tweeter Driver: |
1.1” Hand-coated Vienna Acoustics Silk Dome |
| |
Voltage Sensitivity: |
91 dB |
| |
Nominal Impedance: |
4 Ohms |
| |
Recommended Power: |
50 – 300 watts |
| |
Weight Per Speaker: |
72 lbs |
| |
Cabinet Dimensions (WxHxD): |
Without Floor Spike Assembly: 7.5 x 42.7 x 15.7 inches |
| |
|
With Floor Spike Assembly: 9.5 x 44.5 x 17.75 inches |
| Optimized aluminum spike assembly included. |
| |
|
|
| Retail Price For Cherry Veneer and Piano Black Finish: $6000.00 Per Pair. |
| Retail Price For Rosewood Veneer and Piano White Finish: $6600.00 Per Pair. |

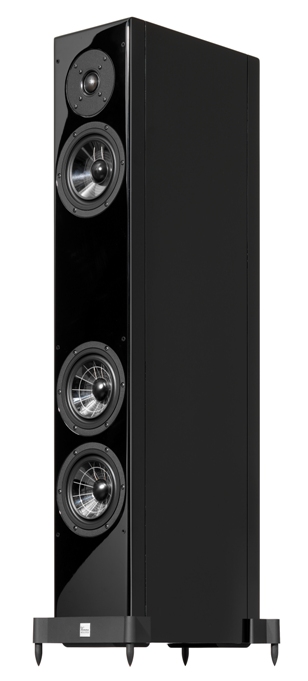

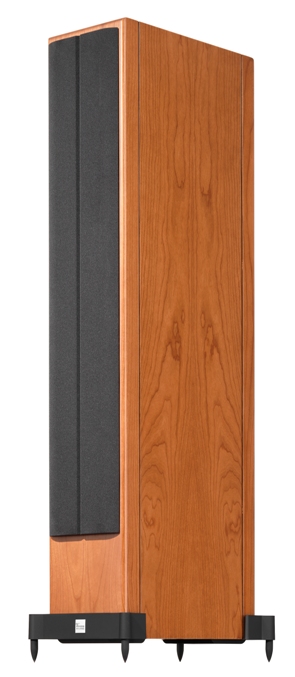

| Technical Data |
|
| |
|
|
| |
System Type: |
3-way |
| |
Frequency Response: |
30 Hz – 22 kHz |
| |
Bass Drivers: |
2 x 6” XPP Spider-Cone |
| |
Midrange Driver: |
6” X3P Cone |
| |
Tweeter Driver: |
1.1” Hand-coated Vienna Acoustics Silk Dome |
| |
Voltage Sensitivity: |
91 dB |
| |
Nominal Impedance: |
4 Ohms |
| |
Recommended Power: |
40 - 250 Watts |
| |
Weight Per Speaker: |
60 lbs |
| |
Dimension (WxHxD): |
Without Floor Spike Assembly: 6.7 x 38.9 x 12.9 inches |
| |
|
With Floor Spike Assembly: 8.5 x 40.0 x 14.75 inches |
| Optimized aluminum spike assembly included. |
| |
|
|
| Retail Price For Cherry Veneer and Piano Black Finish: $3995.00 Per Pair. |
| Retail Price For Rosewood Veneer and Piano White Finish: $4400.00 Per Pair. |

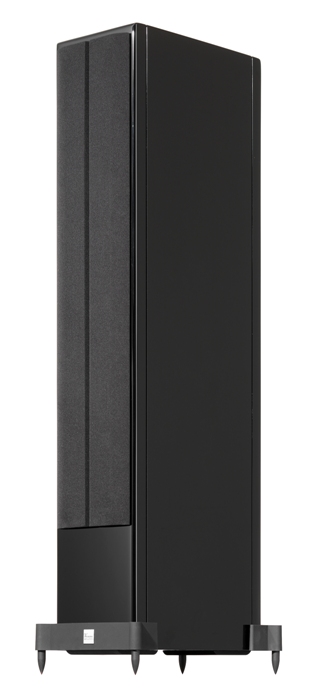

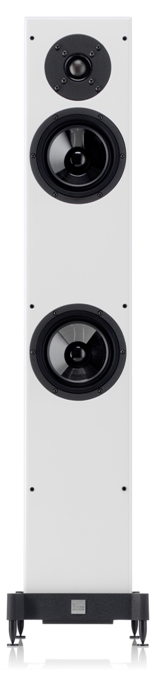

| Technical Data |
|
| |
|
|
| |
System Type: |
2 1/2-way |
| |
Frequency Response: |
30 Hz – 22 kHz |
| |
Mid-Woofer Drivers: |
1 x 6” X3P Cone, 1 x 6” X3P Spider-Cone |
| |
Tweeter Driver: |
1.1” Hand-coated Vienna Acoustics Silk Dome |
| |
Voltage Sensitivity: |
90 dB |
| |
Nominal Impedance: |
4 Ohms |
| |
Recommended Power: |
30 – 200 watts |
| |
Weight Per Speaker: |
58 lbs |
| |
Dimension (WxHxD): |
Without Floor Spike Assembly: 6.7 x 37.0 x 11.6 inches |
| |
|
With Floor Spike Assembly: 8.5 x 38.25 x 13.5 inches |
| Optimized aluminum spike assembly included. |
| |
|
|
| Retail Price For Cherry Veneer and Piano Black Finish: $3500.00 Per Pair. |
| Retail Price For Rosewood Veneer and Piano White Finish: $3850.00 Per Pair. |

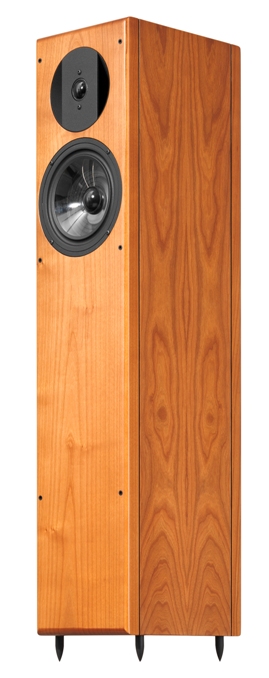

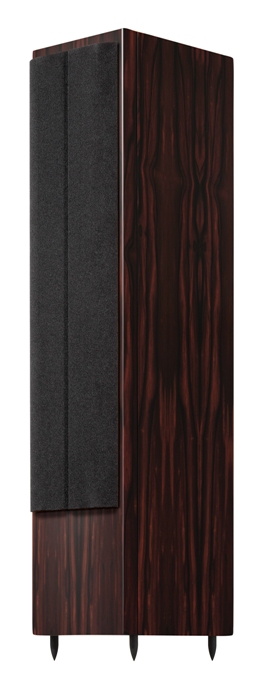

| Technical Data |
|
| |
|
|
| |
System Type: |
2-way |
| |
Frequency Response: |
35 Hz – 20 kHz |
| |
Mid-Woofer Driver: |
7” X3P Transparent Cone |
| |
Tweeter Driver: |
1” Hand-coated Vienna Acoustics Silk Dome |
| |
Voltage Sensitivity: |
90 dB |
| |
Nominal Impedance: |
4 Ohms |
| |
Recommended Power: |
50 - 300 Watts |
| |
Weight Per Speaker: |
40 lbs |
| |
Dimension (WxHxD): |
Without Floor Spike Assembly: 7.4 x 34.6 x 9.8 inches |
| |
|
With Floor Spike Assembly: 9.5 x 36.5 x 11.8 inches |
| Optimized aluminum spike assembly is not included, but can be purchased separately. |
| |
Retail Price For Spike Assembly: $340.00 Per Set. |
| |
| Retail Price For Cherry Veneer and Piano Black Finish: $2195.00 Per Pair. |
| Retail Price For Rosewood Veneer and Piano White Finish: $2395.00 Per Pair. |

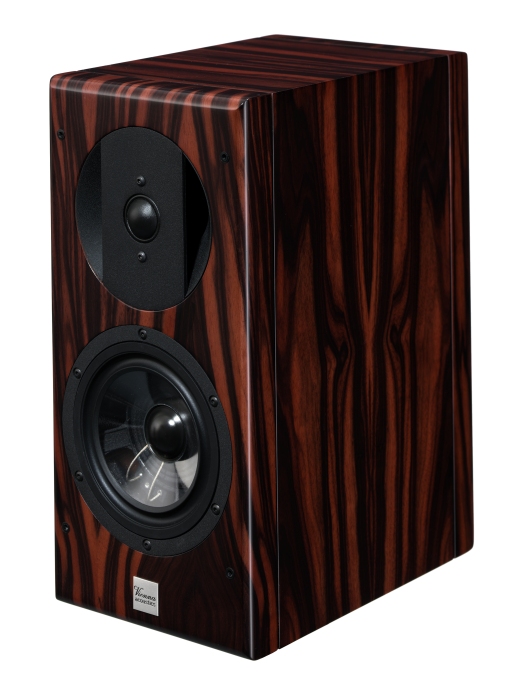

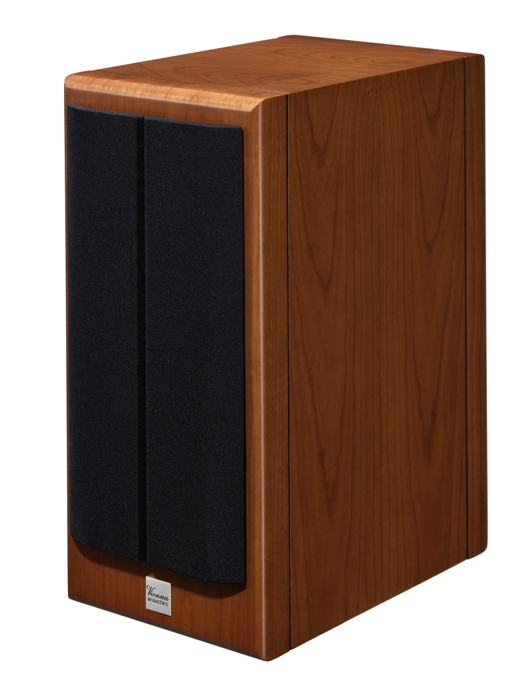

| Technical Data |
|
| |
|
|
| |
System Type: |
2-way |
| |
Frequency Response: |
40 Hz – 20 kHz |
| |
Mid-Woofer Driver: |
6” X3P Spider-Cone |
| |
Tweeter Driver: |
1” Hand-coated Vienna Acoustics Silk Dome |
| |
Voltage Sensitivity: |
88.5 dB |
| |
Nominal Impedance: |
4 Ohms |
| |
Recommended Power: |
50 - 180 Watts |
| |
Weight Per Speaker: |
22 lbs |
| |
Dimension (WxHxD): |
6.85 x 14.2 x 10.4 inches |
| |
|
|
| Retail Price For Cherry Veneer and Piano Black Finish: $1850.00 Per Pair. |
| Retail Price For Rosewood Veneer and Piano White Finish: $2000.00 Per Pair. |

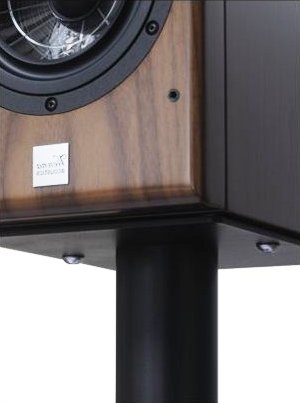

Available in gloss black or gloss white, this stand is custom designed to fit perfectly with the Haydn Grand. Included is hardware to securely bolt the loudspeaker to the top plate of the stand. Measures 27.5 inches tall and the pillar can be filled with your choice of damping material.
Retail Price: $450.00 Per Pair. Available in Gloss Black or Gloss White.

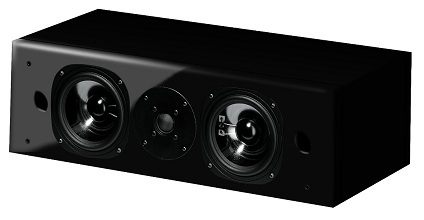

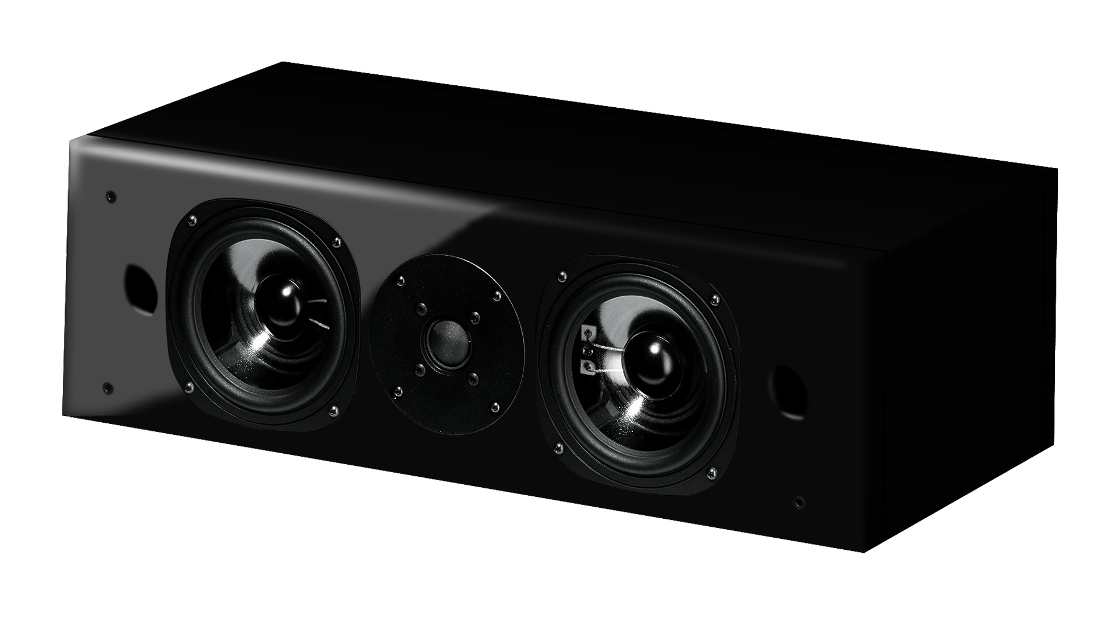

| Technical Data |
|
| |
|
|
| |
System Type: |
2-way |
| |
Frequency Response: |
44 Hz – 20 kHz |
| |
Mid-Woofer Driver: |
2 x 5.5” XPP Transparent Cones |
| |
Tweeter Driver: |
1” Vienna Acoustics Silk Dome |
| |
Voltage Sensitivity: |
91 dB |
| |
Nominal Impedance: |
6 Ohms |
| |
Recommended Power: |
20 - 200 Watts |
| |
Weight Per Speaker: |
28 lbs |
| |
Dimension (WxHxD): |
21.0 x 6.5 x 10.6 inches |
| |
|
| Retail Price For Piano Black Finish: $795.00 Each. |

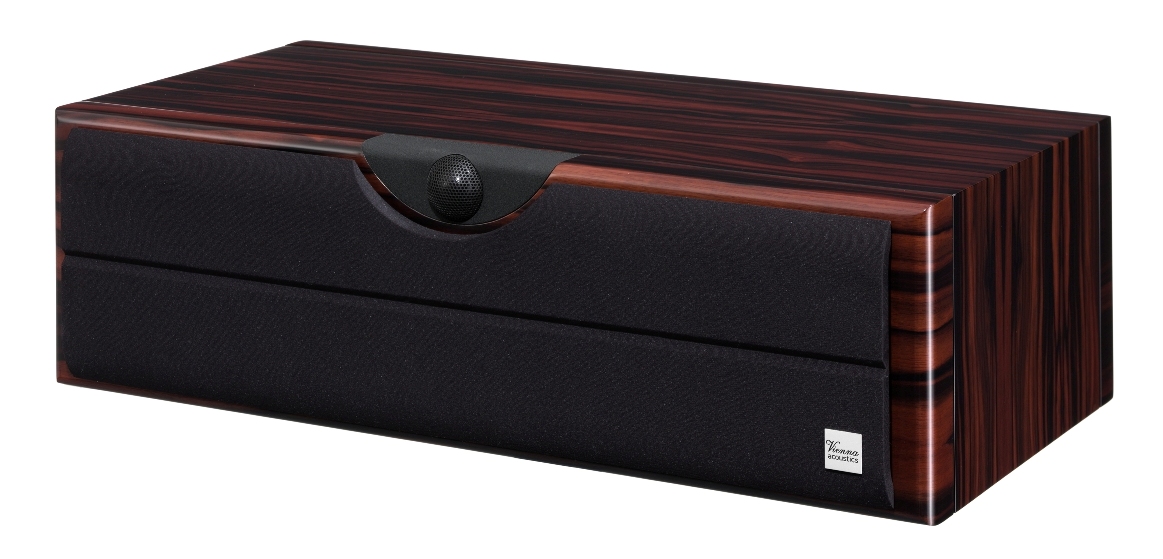

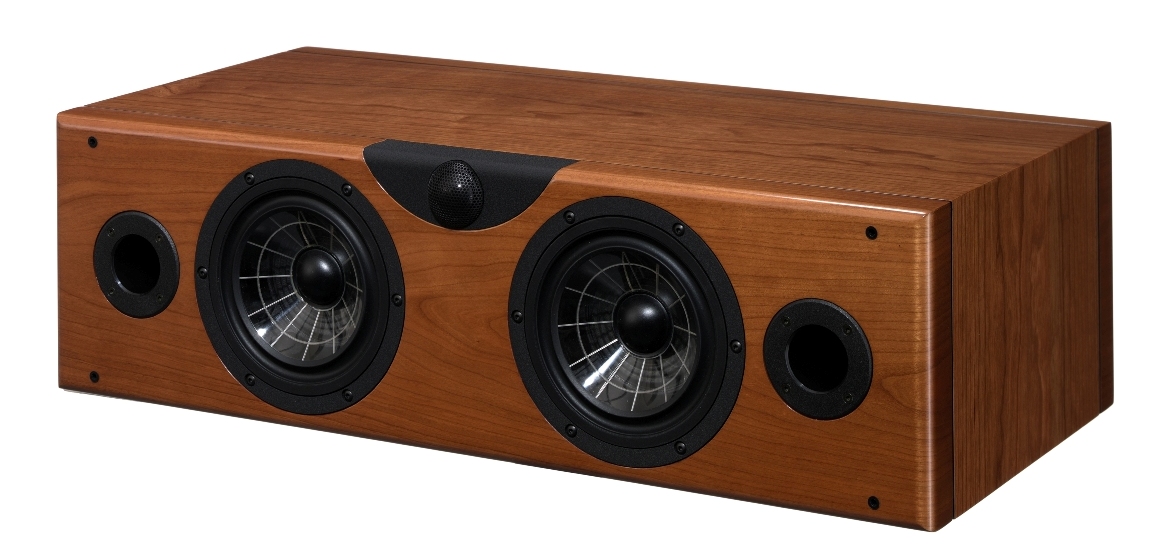

| Technical Data |
|
| |
|
|
| |
System Type: |
2-way |
| |
Frequency Response: |
38 Hz – 22 kHz |
| |
Mid-Woofer Driver: |
2 x 6” X3P Spider-Cones |
| |
Tweeter Driver: |
1” Vienna Acoustics Hand-Coated Silk Dome |
| |
Voltage Sensitivity: |
91 dB |
| |
Nominal Impedance: |
4 Ohms |
| |
Recommended Power: |
20 - 200 Watts |
| |
Weight Per Speaker: |
30 lbs |
| |
Dimension (WxHxD): |
23.25 x 6.75 x 11.5 inches |
| |
|
|
| Retail Price For Cherry Veneer and Piano Black Finish: $1395.00 Each. |
| Retail Price For Rosewood Veneer and Piano White Finish: $1549.00 Each. |

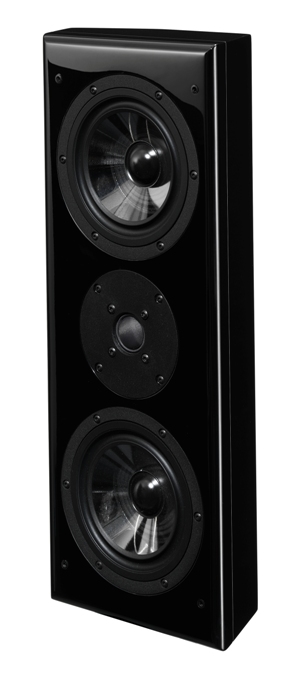

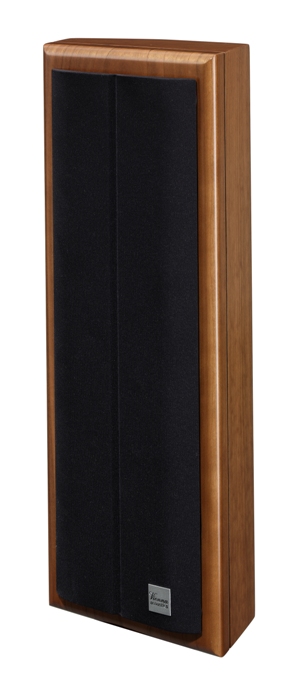

| Technical Data |
|
| |
|
|
| |
System Type: |
2-way |
| |
Frequency Response: |
70 Hz – 22 kHz |
| |
Mid-Woofer Drivers: |
2 x 6” X3P Transparent Spider-Cones |
| |
Tweeter Driver: |
1” Vienna Acoustics Silk Dome |
| |
Voltage Sensitivity: |
91 dB |
| |
Nominal Impedance: |
4 Ohms |
| |
Recommended Power: |
25 - 180 Watts |
| |
Weight Per Speaker: |
16 lbs |
| |
Dimension (WxHxD): |
7.9 x 18.9 x 3.7 inches |
| Wall mounting bracket included. |
|
| |
|
Retail Price For Cherry Veneer and Piano Black Finish: $795.00 Each. |
| Retail Price For Rosewood Veneer and Piano White Finish: $895.00 Each. |

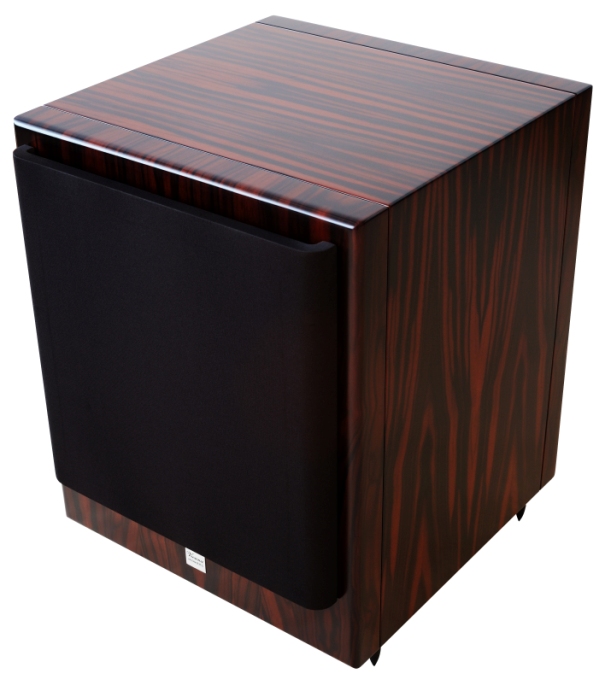

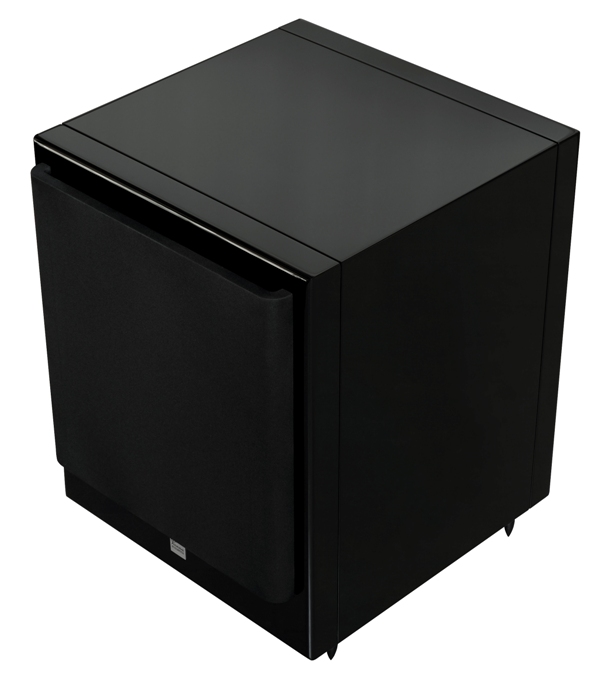

| Technical Data |
|
| |
|
|
| |
System Type: |
Bottom vented bass reflex (requires 1” to 2” of clearance between vent and floor) |
| |
Frequency Response: |
20 Hz – 100 Hz |
| |
Driver: |
12” Proprietary Vienna Acoustics designed carbon-filled paper pulp, manufactured by ScanSpeak |
| |
Onboard Amplifier: |
300 watts, SMD Technology |
| |
Inputs: |
2 x high level (~1000 Ohms), 2 x line level |
| |
Controls: |
Power/standby switch, 0° - 180° phase switch, variable crossover control, variable gain control |
| |
Weight Per Speaker: |
58 lbs |
| |
Dimension (WxHxD): |
Without Floor Spikes: 15.25 x 19.5 x 15.25 inches |
| |
|
With Floor Spikes: 15.25 x 21.5 x 15.25 inches |
| |
|
Retail Price For Cherry Veneer and Piano Black Finish: $3500.00 Each. |
| Retail Price For Rosewood Veneer and Piano White Finish: $3750.00 Each. |
We at Osage Audio Products are proud to have been chosen as a retailer for this outstanding line of loudspeakers. If you have questions about Vienna Acoustics or would like to own a pair, please call us at 573-696-3551 or email us at your convenience. We are open late and weekends.
Vienna Acoustics products are not sold through our Online Store. Please call to order or to reserve an appointment to listen for yourself.
You can find more information about Vienna Acoustics, their historic hometown, and their fine products by visiting their website.
|
